SELECT A DIAGRAM

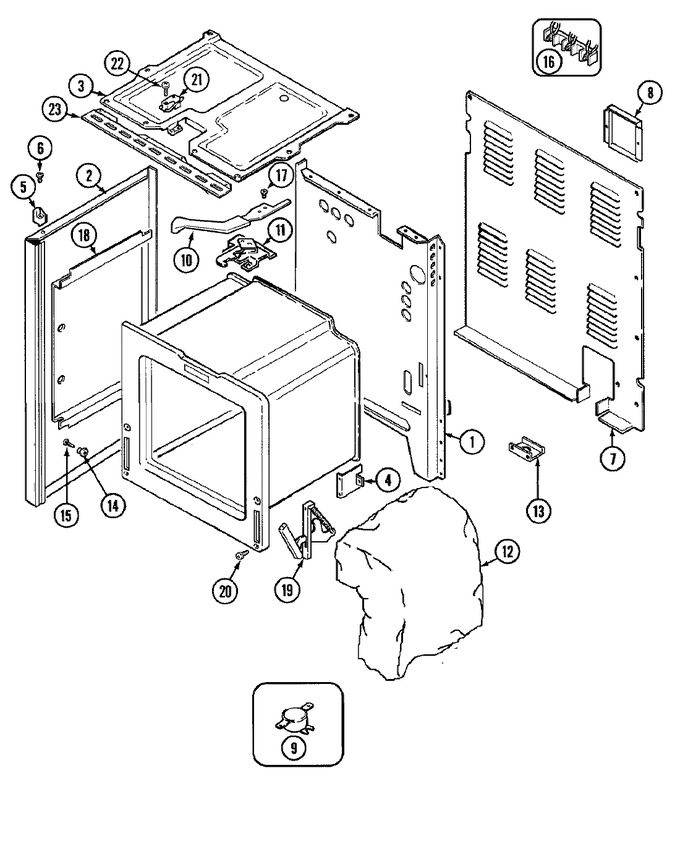

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven/base


05 - Top Assembly


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001772		Back, Main	52	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	52		Immediately	$ 12.62
2	74001907		Panel, Side (blk)	52	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	52		Immediately	$ 12.62
3	74001753		Box, Burner----na	52	Appelez-nous	-
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	52		Immediately	$ 12.62
4	3807F400-51		Support,oven Rear	52	Appelez-nous	-
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	52		Immediately	$ 12.62
5	8010P088-60		Spacer, Main Top (rt)	52	Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)	52	Appelez-nous	-
6	7101P313-60		Screw (8abx3/8-zn)	52	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	52		Immediately	$ 12.62
7	4005F455-51		Cover, Wire	52	Appelez-nous	-
8	4005F427-51		Cover, Access	52	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	52		Immediately	$ 12.62
9	7403P160-60		Switch, Hi-limit	52	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	52		Immediately	$ 12.62
10	74003005		Lever, Latch (blk)	52	Appelez-nous	-
11	74003123		Latch, Oven Door	52	Appelez-nous	-
11	W10828565		Screw, Black   (Replaces: 7101P270-60)	52			$ 6.70
11	4804F028-60		Insulation, Latch Assy.	52	Appelez-nous	-
12	74003037		Insulation, Oven Wrap	52	Appelez-nous	-
12	74001800		Insulation, Back	52	Appelez-nous	-
13	3605F174-51		Plate, Conduit Tubing	52	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	52		Immediately	$ 12.62
14	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	52			$ 7.07
15	W11693756		Screw (8abx19/32-zn)   (Replaces: 74003004)	52		Immediately	$ 12.65
16	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)	52		Immediately	$ 31.65
17	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	52			$ 4.29
18	74002599		Retainer, Insulation (side)	52	Appelez-nous	-
19	7106P057-60		Hinge	52	Appelez-nous	-
19	WP74011141		Hinge, Door   (Replaces: 74003249)	55		Immediately	$ 128.06
20	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	52			$ 4.29
21	74001708		Switch, Door Latch	52	Appelez-nous	-
22	7101P031-60		Screw	52	Appelez-nous	-
23	3801F305-80		Bracket, Main Top	52	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
