SELECT A DIAGRAM
01 - Body

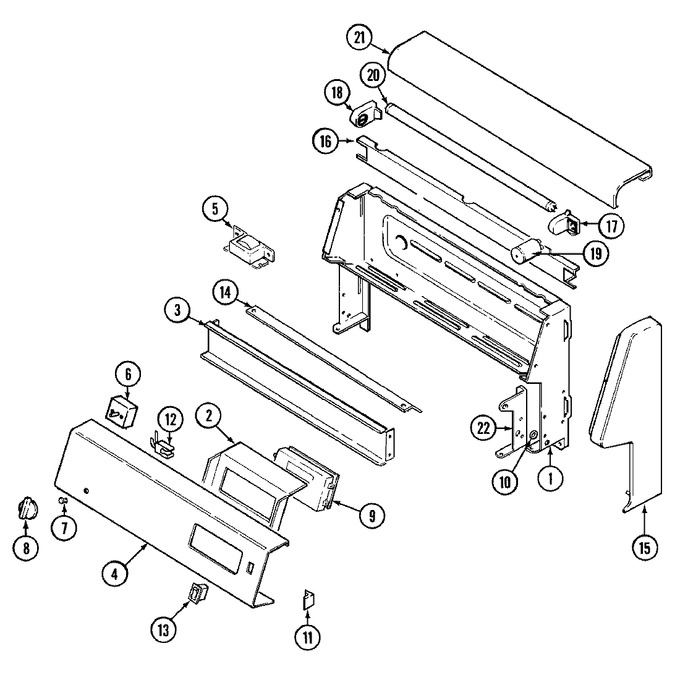

02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74002162 | Housing, Control Panel | 52 |
|
- | ||||
| 2 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 52 |
|
$ 6.98 | ||||
| 2 | 74002099 | Bracket, Clock | 52 |
|
- | ||||
| 3 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 52 |
|
Immediately | $ 12.62 | |||
| 3 | 3802F088-51 | Brace, Control Panel | 52 |
|
- | ||||
| 4 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 52 |
|
Immediately | $ 6.47 | |||
| 4 | 74003142 | Panel, Control | 52 |
|
- | ||||
| 5 | W11233072 | Screw (Replaces: 7101P147-60) | 52 |
|
Immediately | $ 12.62 | |||
| 5 | 74003033 | Ballast | 52 |
|
- | ||||
| 6 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 52 |
|
Immediately | $ 6.26 | |||
| 6 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 52 |
|
Immediately | $ 35.10 | |||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 52 |
|
Immediately | $ 57.78 | |||
| 7 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 52 |
|
$ 6.73 | ||||
| 8 | WP74003143 | Knob, Infinite Switch (Replaces: 74003143) | 52 |
|
$ 41.32 | ||||
| 9 | 74003172 | Clock | 52 |
|
- | ||||
| 10 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 52 |
|
$ 7.68 | ||||
| 11 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 52 |
|
$ 6.98 | ||||
| 11 | 8010P083-60 | Spacer | 52 |
|
- | ||||
| 12 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 52 |
|
$ 106.11 | ||||
| 13 | 7403P067-60 | Switch, Rocker (blk) | 52 |
|
$ 91.35 | ||||
| 14 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 52 |
|
Immediately | $ 12.62 | |||
| 14 | 3604F201-80 | Shield, Sight | 52 |
|
- | ||||
| 15 | 74002794 | End Cap, Panel (rt-blk) | 52 |
|
- | ||||
| 15 | 74002795 | End Cap, Panel (lt-blk) | 52 |
|
- | ||||
| 16 | 3807F406-71 | Holder, Lamp (wht) | 52 |
|
- | ||||
| 17 | 7724P066-60 | Cover, Wire (light) | 52 |
|
- | ||||
| 17 | 7408P029-60 | Receptacle, Light (rt) | 52 |
|
- | ||||
| 18 | 7408P030-60 | Receptacle, Snap-in (lt) | 52 |
|
- | ||||
| 18 | 7724P066-60 | Cover, Wire (light) | 52 |
|
- | ||||
| 19 | 7415P001-60 | Starter | 52 |
|
- | ||||
| 20 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 52 |
|
Immediately | $ 121.45 | |||
| 21 | 74001066 | Cover, Ctl. Pnl. Light | 52 |
|
- | ||||
| 22 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 52 |
|
Immediately | $ 12.62 | |||
| 22 | 3807F454-51 | Support, Main Top (lt) | 52 |
|
- | ||||
| 22 | 3807F453-51 | Support, Main Top (rt) | 52 |
|
- | ||||
| 23 | 5170P205-60 | Harness, Sensor/lock | 52 |
|
- | ||||
| 23 | 5170D199-60 | Harness, Control Panel | 52 |
|
- | ||||
| 23 | 5175D063-60 | Harness, Panel To Top | 52 |
|
- | ||||
| 24 | 74003056 | Manual, Use & Care | 52 |
|
- | ||||
| 25 | 16000329 | Guide, Quick Ref. - Magic Chef | 52 |
|
- |
