View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base

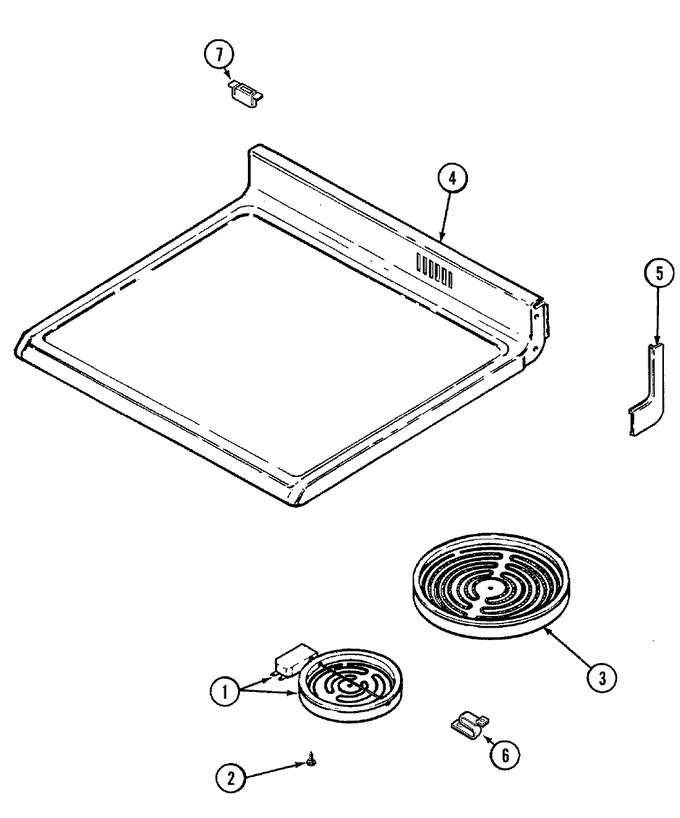

05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10823704 | Element W/limiter (6``) (Replaces: 74002653) | 52 |
|
Immediately | $ 309.01 | |||
| 1 | W10823704 | Limiter (6``) (Replaces: 74002651) | 52 |
|
Immediately | $ 309.01 | |||
| 2 | WP74004005 | Screw (Replaces: 7101P349-60) | 52 |
|
$ 6.95 | ||||
| 3 | 74002652 | Limiter (8``) | 52 |
|
- | ||||
| 3 | W10823707 | Element W/limiter (8``) (Replaces: 74002649) | 52 |
|
Immediately | $ 316.13 | |||
| 4 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 52 |
|
Immediately | $ 4.86 | |||
| 4 | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 52 |
|
Immediately | $ 9.95 | |||
| 4 | 74003145 | Top, Main (blk Glass/chrm Trm) | 52 |
|
- | ||||
| 5 | 7746P031-60 | End Cap (lt-blk) | 52 |
|
$ 26.25 | ||||
| 5 | 7746P030-60 | End Cap (rt-blk) | 52 |
|
$ 26.16 | ||||
| 6 | 74003072 | Support, Ceramic Element | 52 |
|
- | ||||
| 7 | 74003053 | Light, Indicator | 52 |
|
- |
