SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven/base


05 - Top Assembly


06 - Wiring Information

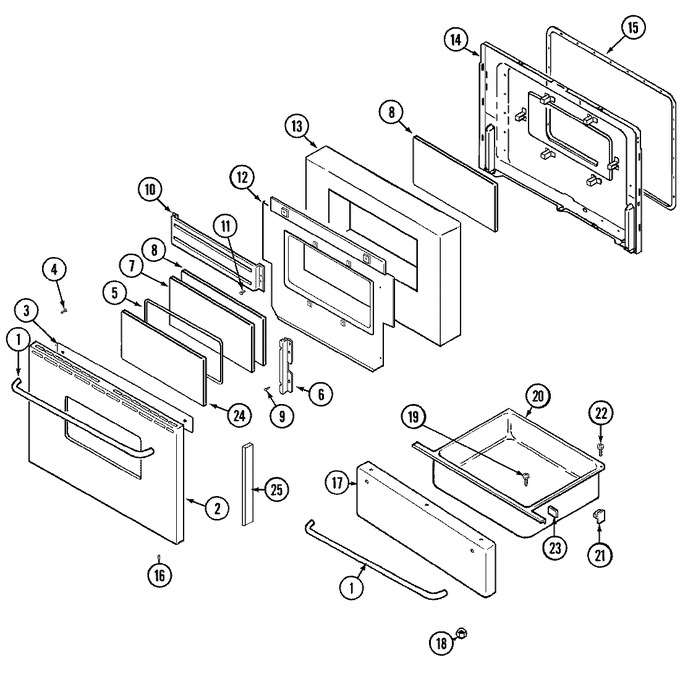

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001071		Handle, Door	52	Appelez-nous	-
2	74003047		Panel, Oven Door	52	Appelez-nous	-
3	74003146		Insulation, Foil Back	52	Appelez-nous	-
4	WP7101P072-60		Screw   (Replaces: 7101P072-60)	52			$ 6.77
5	7201P017-60		Gasket, Window	52			$ 52.69
6	74003048		Retainer, Glass	52	Appelez-nous	-
7	74002002		Glass, Inner	52			$ 62.17
8	74001841		Glass, Inner	52	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	52		Immediately	$ 12.62
10	74003050		Baffle, Oven Door Secondary	52	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	52		Immediately	$ 12.62
12	74001843		Baffle, Door	52	Appelez-nous	-
13	74001842		Insulation, Door	52	Appelez-nous	-
14	74003244		Lining, Door	55	Appelez-nous	-
14	74001058		Lining, Door	52	Appelez-nous	-
15	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	52		Immediately	$ 77.61
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	52		Immediately	$ 12.62
17	74003147		Panel, Drawer	52	Appelez-nous	-
18	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	52			$ 4.00
19	WP7101P072-60		Screw   (Replaces: 7101P072-60)	52			$ 6.77
20	3405F019-80		Drawer, Storage	52	Appelez-nous	-
20	74003618		Drawer, Storage	56	Appelez-nous	-
21	8004P026-60		Support, Drawer (rear)	52			$ 9.29
21	74003566		Roller, Drawer	56	Appelez-nous	-
21	WP488130		Nut   (Replaces: 7103P082-60)	56			$ 6.27
22	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	52		Immediately	$ 12.62
22	W10124350		Not Required Part Or See Note	56	Appelez-nous	-
23	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	52			$ 11.95
24	74001072		Glass, Outer Door (blk)	52	Appelez-nous	-
25	74001073		Trim, Side	52	Appelez-nous	-
25	74001074		Nut,speed	52	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
