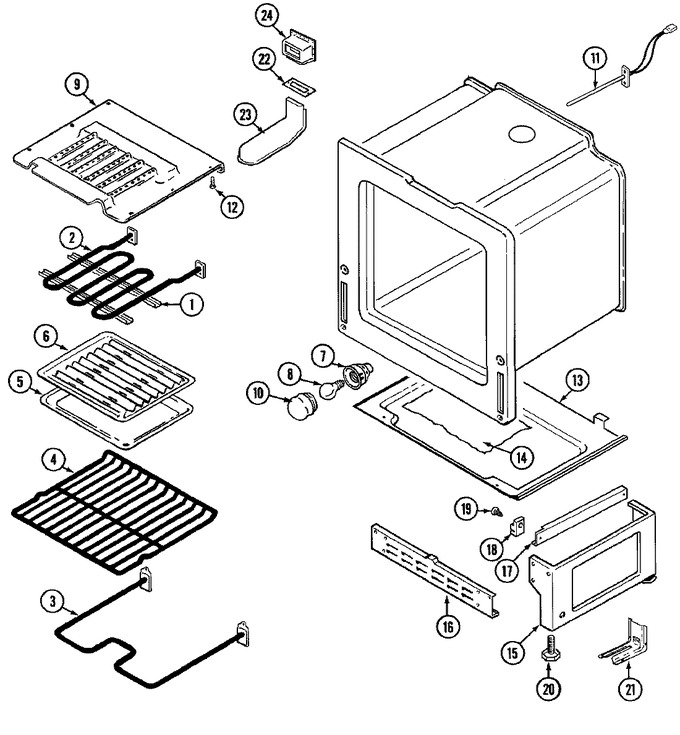

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F387-45 | Support, Broil Element | 52 |
|
- | ||||
| 2 | WPY04000059 | Element, Broil (Replaces: Y04000059) | 52 |
|
$ 159.00 | ||||
| 3 | WP74003019 | Element, Bake (Replaces: Y04000058) | 52 |
|
Immediately | $ 51.10 | |||
| 4 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 52 |
|
$ 65.15 | ||||
| 5 | Y3401F02019 | Pan, Broil | 52 |
|
- | ||||
| 6 | Y3413F01619 | Insert, Broil Pan | 52 |
|
- | ||||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 52 |
|
Immediately | $ 12.62 | |||
| 7 | 74003125 | Receptacle, Bulb | 52 |
|
- | ||||
| 8 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 52 |
|
Immediately | $ 16.80 | |||
| 9 | 3601F237-47 | Baffle, Broil | 52 |
|
- | ||||
| 10 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 52 |
|
Immediately | $ 71.93 | |||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 52 |
|
Immediately | $ 12.62 | |||
| 11 | 12001656 | Sensor, Oven (long) (Replaces: 74003095) | 52 |
|
Immediately | $ 39.55 | |||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 52 |
|
Immediately | $ 12.62 | |||
| 13 | 3804F112-51 | Retainer, Insulation | 52 |
|
- | ||||
| 13 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 52 |
|
Immediately | $ 12.62 | |||
| 14 | 8312P058-60 | Foil, Insulation Retainer | 52 |
|
- | ||||
| 15 | 74003016 | Pedestal, Side | 52 |
|
- | ||||
| 16 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 52 |
|
Immediately | $ 12.62 | |||
| 16 | 4020F001-80 | Pedestal, Front/rear | 52 |
|
- | ||||
| 17 | 3406F028-51 | Runner, Drawer | 52 |
|
- | ||||
| 17 | 74003565 | Runner, Drawer | 56 |
|
- | ||||
| 18 | 74002312 | Support, Drawer | 52 |
|
$ 27.09 | ||||
| 18 | 74003566 | Roller, Drawer | 56 |
|
- | ||||
| 18 | WP488130 | Nut (Replaces: 7103P082-60) | 56 |
|
$ 6.27 | ||||
| 19 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 52 |
|
Immediately | $ 6.98 | |||
| 19 | W10124350 | Not Required Part Or See Note | 56 |
|
- | ||||
| 20 | W11665456 | Leg, Leveling (Replaces: 74002373) | 52 |
|
Immediately | $ 25.30 | |||
| 21 | WP7101P485-60 | Screw (Replaces: 7101P344-60) | 52 |
|
$ 26.33 | ||||
| 21 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 74002311) | 52 |
|
Immediately | $ 4.69 | |||
| 22 | 7201P054-60 | Gasket, Vent | 52 |
|
- | ||||
| 23 | 4006W107-45 | Vent Box Assy. | 52 |
|
- | ||||
| 24 | 3826W014-45 | Extension, Vent | 52 |
|
- |
