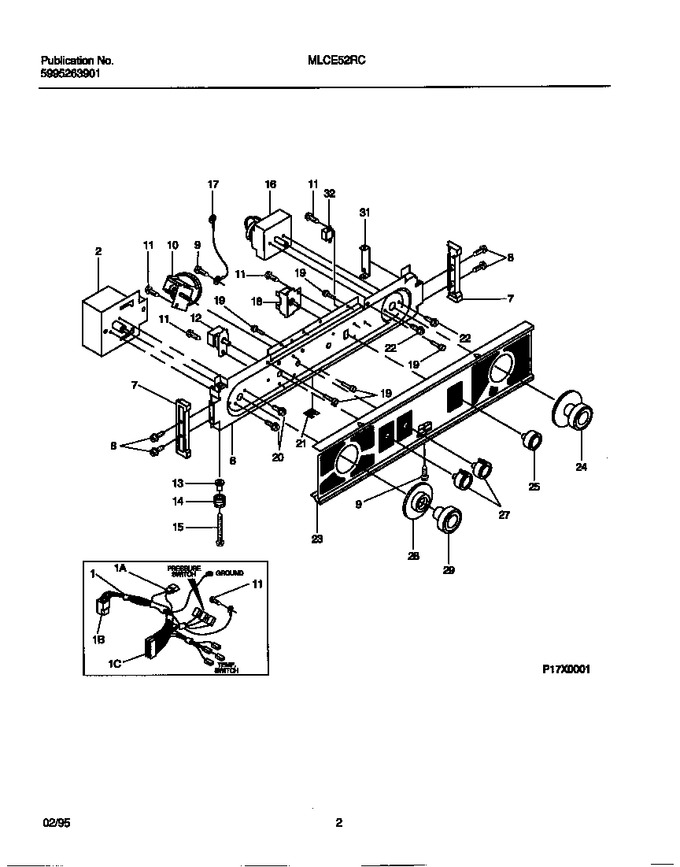

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303307984 | Receptacle-connector |
|
- | |||||
| 1 | 5303307985 | Block-disconnect |
|
- | |||||
| 1 | 5303307982 | Harness-console Wiring (automatic) (includes Pos. 1a, 1b |
|
- | |||||
| 1 | 5303307983 | Plug-terminal (2 Way) |
|
- | |||||
| 2 | 5303307986 | Timer-control (washer) |
|
- | |||||
| 6 | 5303307987 | Bracket-control |
|
- | |||||
| 7 | 5303307988 | End Cap-console (rh & Lh) |
|
- | |||||
| 8 | 5303307989 | Screw-end Cap Mounting (4) |
|
- | |||||
| 9 | 5303307990 | Screw-mounting (2) |
|
- | |||||
| 10 | 5303307991 | Switch-water Level |
|
- | |||||
| 11 | 5303307992 | Screw |
|
- | |||||
| 12 | 5303307993 | Switch-water Temperature |
|
- | |||||
| 13 | 5303307994 | Lock Screw (2) |
|
- | |||||
| 14 | 5303307995 | Spring-console Lock (2) |
|
- | |||||
| 15 | 5303307996 | Screw-console Lock (2) |
|
- | |||||
| 16 | WP3388255 | Timer-control (dryer) (Replaces: 5303307997) |
|
$ 326.61 | |||||
| 17 | 5303307998 | Strut-console |
|
- | |||||
| 18 | 5303307999 | Switch-push-to-start |
|
- | |||||
| 19 | 5303308000 | Bumper-console (5) |
|
- | |||||
| 20 | 5303308001 | Screw-timer Mounting (2) |
|
- | |||||
| 21 | 5303308002 | Clip-console |
|
- | |||||
| 22 | 5303308003 | Screw-dryer Timer Mounting (2) |
|
- | |||||
| 23 | 5303308004 | Panel-control, White |
|
- | |||||
| 24 | 5303308006 | Knob-timer, White (dryer) |
|
- | |||||
| 25 | 5303308008 | Knob-push-to-start, White |
|
- | |||||
| 27 | 5303308010 | Knob-control, White |
|
- | |||||
| 28 | 5303308012 | Dial-timer, White (washer) |
|
- | |||||
| 29 | 5303308014 | Knob-timer, White (washer) |
|
- | |||||
| 31 | 5303013874 | Lock-console (2) |
|
$ 5.04 | |||||
| 32 | 5303308016 | Buzzer |
|
- |
