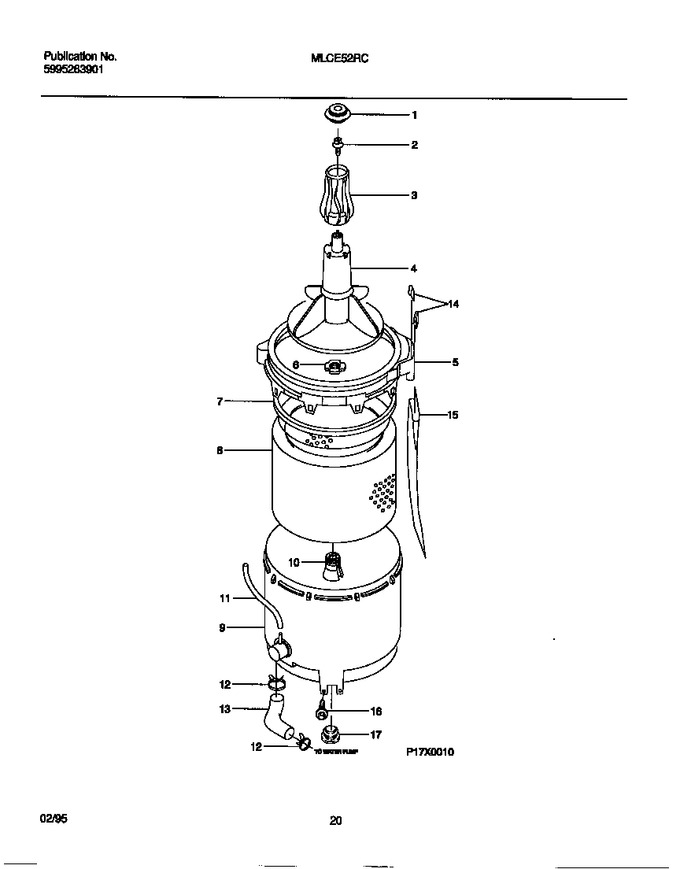

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303308217 | Cap-agitator |
|
- | |||||
| 2 | 5303308218 | Screw & Washer-5/16-24 X 1 |
|
- | |||||
| 3 | 5303308219 | Filter-agitator |
|
- | |||||
| 4 | 5303308220 | Agitator |
|
- | |||||
| 5 | 5303308221 | Tub Ring & Gasket (includes Pos. 7, 14 & 15) |
|
- | |||||
| 6 | 5303308222 | Nut-spanner |
|
- | |||||
| 7 | 5303308223 | Gasket-tub Ring |
|
- | |||||
| 8 | 5303308224 | Basket |
|
- | |||||
| 9 | 5303308225 | Tub |
|
- | |||||
| 10 | 5303308226 | Block-basket Drive |
|
- | |||||
| 11 | 5303308227 | Hose-pressure Switch |
|
$ 91.90 | |||||
| 12 | 5303308228 | Clamp-hose |
|
- | |||||
| 13 | 5303308229 | Hose-tub To Pump |
|
- | |||||
| 14 | 5303308230 | Clip-retaining (2) |
|
- | |||||
| 15 | 5303308231 | Tube-drain Off |
|
- | |||||
| 16 | 5303308232 | Screw & Washer-tub Mounting (4) |
|
- | |||||
| 17 | 5303308233 | Gasket-centerpost |
|
- |
