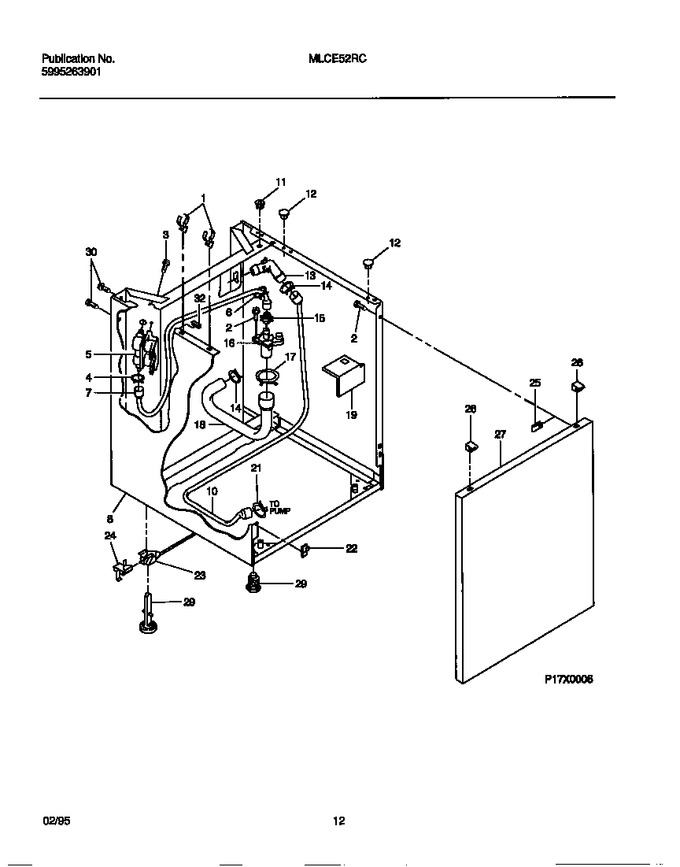

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303308132 | Clip-condenser (2) |
|
- | |||||
| 2 | 636T091P05 | Screw-10-16 X 1/2 |
|
- | |||||
| 3 | 5303308133 | Screw-mixing Valve Mounting (2) |
|
- | |||||
| 4 | 5303308134 | Clamp-hose |
|
- | |||||
| 5 | 5303308135 | Valve-water Mixing |
|
- | |||||
| 6 | 5303308136 | Clamp-hose |
|
- | |||||
| 7 | 5303308137 | Hose-water Inlet |
|
- | |||||
| 8 | 5303308138 | Cabinet, White |
|
- | |||||
| 10 | 5303308140 | Hose-drain |
|
- | |||||
| 11 | 5303308040 | Nut-push In (2) |
|
- | |||||
| 12 | 5303308141 | Plug-top To Cabinet |
|
- | |||||
| 13 | 5303308142 | Connector-hose |
|
- | |||||
| 14 | 5303308136 | Clamp-hose |
|
- | |||||
| 15 | 5303308143 | Cap-siphon Break |
|
- | |||||
| 16 | 5303308144 | Siphon Break |
|
- | |||||
| 17 | 5303308145 | Clamp-hose |
|
- | |||||
| 18 | 5303308146 | Hose-water Inlet |
|
- | |||||
| 19 | 5303308147 | Shield-wire Harness |
|
- | |||||
| 21 | 5303308148 | Clamp-hose |
|
- | |||||
| 22 | 5303308030 | Clip-front Panel (2) |
|
- | |||||
| 23 | 5303308149 | Link-leveling |
|
- | |||||
| 24 | 5303308150 | Clip-leveling Mechanism (2) |
|
- | |||||
| 25 | 5303308031 | Clip-ground |
|
- | |||||
| 26 | 5303308151 | Lock-top (2) |
|
- | |||||
| 27 | 5303308152 | Panel-front, White |
|
- | |||||
| 28 | 5303308154 | Foot-front (2) |
|
- | |||||
| 29 | 5303308155 | Foot-rear (2) |
|
- | |||||
| 30 | 5308004340 | Screw-10-24 X 1/2 |
|
- | |||||
| 32 | 5303308156 | Protector-edge |
|
- |
