SELECT A DIAGRAM

01 - Cover


02 - Console And Controls


03 - Cabinet, Base


04 - Dryer-cabinet, Drum, Heater


05 - Dryer-bracket


06 - Dryer Door


07 - Washer-cabinet


08 - Washer-top Panel


09 - Washer-drive


10 - Washer-drive Connection


11 - Washer-tubs, Motor


12 - Washer-hoses


13 - Transmission


14 - Hose, Exhaust Extension


15 - Miscellaneous Parts

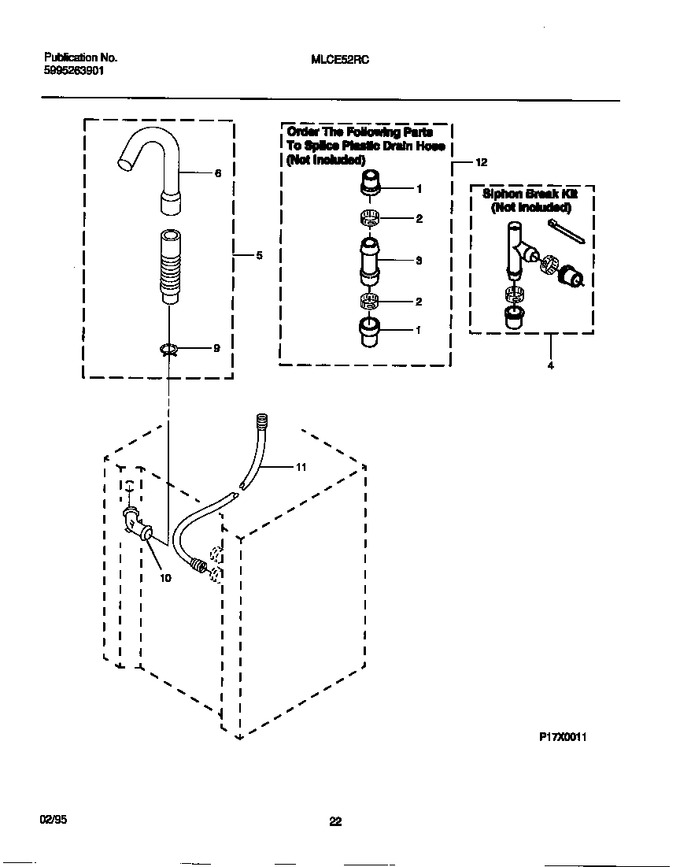

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303308234		Sleeve Kit-plastic Drain Hose		Appelez-nous	-
2	5303308235		Clamp-hose (2)		Appelez-nous	-
3	5303308236		Connector-straight		Appelez-nous	-
4	5303308237		Siphon Break Kit (not Orginal Equipment)		Appelez-nous	-
5	5303308238		Hose-corrugated Plastic Drain		Appelez-nous	-
6	5303308239		Nozzle-drain Hose		Appelez-nous	-
9	5303308240		Clamp-hose		Appelez-nous	-
10	5303308142		Connector-hose		Appelez-nous	-
11	5303308241		Hose-inlet (2)		Appelez-nous	-
12	5303308242		Connector Kit-plastic Drain Hose		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
