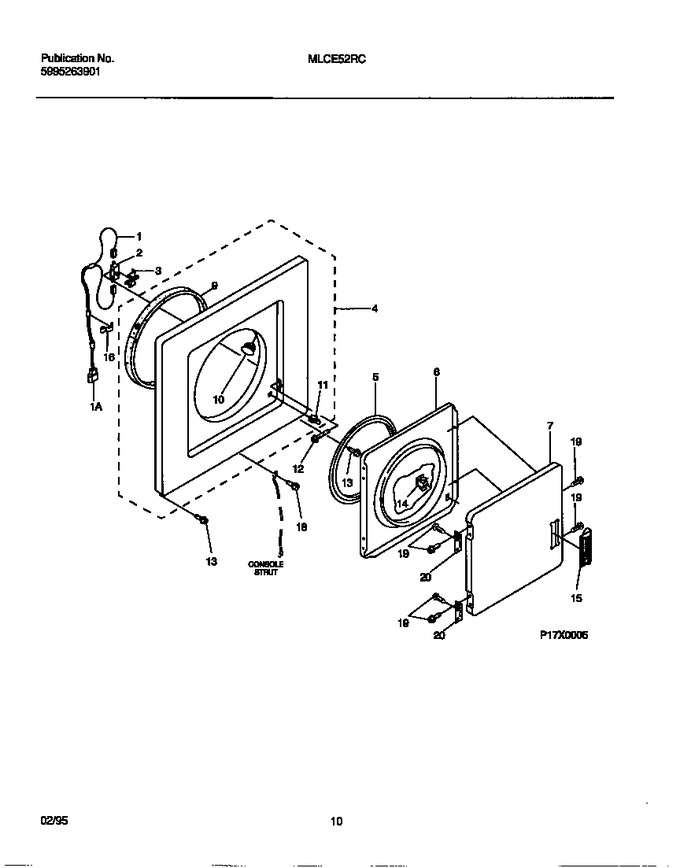

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303308118		Plug-terminal (2-way)		Appelez-nous	-
1	5303308113		Harness-door Switch (includes Pos. 1a)		Appelez-nous	-
2	5303308125		Switch-door		Appelez-nous	-
3	5303308127		Lever-door Switch		Appelez-nous	-
4	5303308129		Panel-front, White		Appelez-nous	-
5	5303308131		Seal-door		Appelez-nous	-
6	5303308114		Door-rear		Appelez-nous	-
7	5303308116		Door-front, White		Appelez-nous	-
9	5303308121		Bearing & Seal		Appelez-nous	-
10	5303308123		Clip-felt Pad (2)		Appelez-nous	-
11	5303308124		Strike-panel		Appelez-nous	-
12	5303308126		Screw-door Switch Mounting (2)		Appelez-nous	-
13	636T091P05		Screw-10-16 X 1/2 (2)		Appelez-nous	-
14	5303308115		Catch-door		Appelez-nous	-
15	5303308117		Handle-door, White		Appelez-nous	-
16	5303308122		Support-protector		Appelez-nous	-
18	5303307992		Screw-console Strut Mounting		Appelez-nous	-
19	5303307990		Screw-door Mount To Hinge And Panel (10)		Appelez-nous	-
20	5303308128		Hinge And Pin-door (2)		Appelez-nous	-
