SELECT A DIAGRAM

Diagram for 02 - Splasher Control
02 - Splasher Control

Diagram for 03 - Burner, Manifold And Gas Control
03 - Burner, Manifold And Gas Control

Diagram for 04 - Lower Oven Door Parts
04 - Lower Oven Door Parts

Diagram for 05 - Drawer Parts
05 - Drawer Parts

Diagram for 06 - Lower Body Parts
06 - Lower Body Parts

Diagram for 07 - Control Panel
07 - Control Panel

Diagram for 08 - Power Control
08 - Power Control

Diagram for 09 - Upper Body Parts
09 - Upper Body Parts

Diagram for 10 - Top Door Parts
10 - Top Door Parts

Diagram for 11 - Cooktop Parts
11 - Cooktop Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3131583 Back O/u Mid Wall Appelez-nous -
2 5303208612 Reflctr - Work Lamp Appelez-nous -
3 3131275 Bulb Fluor Wrk Lit Special Order $ 49.40

4 3014927 Insul Fluor Lite Recept (2) Appelez-nous -
5 597T047S01 Recept Fluor Lite (2) Appelez-nous -
6 3131959 Trim Vent Appelez-nous -
7 08010396 Blower Mtr Assy. Appelez-nous -
8 08067830 Gusset-mwv Supt Lh Appelez-nous -
9 3200496 Glass Splashr U/o Appelez-nous -
10 5303209065 Pnl Splashr Upper Appelez-nous -
11 5303051115 Ballast Appelez-nous -
12 08067733 Fstnr., Cable Clamp Appelez-nous -
13 5308008992 Fstnr - Purse Lock Appelez-nous -
14 3204842 Recept Starter Appelez-nous -
15 3206218 Starter - Fluro Lite Special Order $ 54.08

16 08010548 Trim-o/u Spl. Side Lh Appelez-nous -
17 5303208988 Trim O/u Spl Gl. Filter Appelez-nous -
18 5303208662 Switch-rocker (2) Appelez-nous -
19 3051348 Angle S/c Stat Mtg Appelez-nous -
20 08067928 Thermo.-oven S/c Appelez-nous -
*40726 174T204F01-18 Cover Outlet O/u Hood Appelez-nous -
16A 08010549 Trim-o/u Spl. Side Rh Appelez-nous -
8A 08067737 Gusset-mwv Supt Rh Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

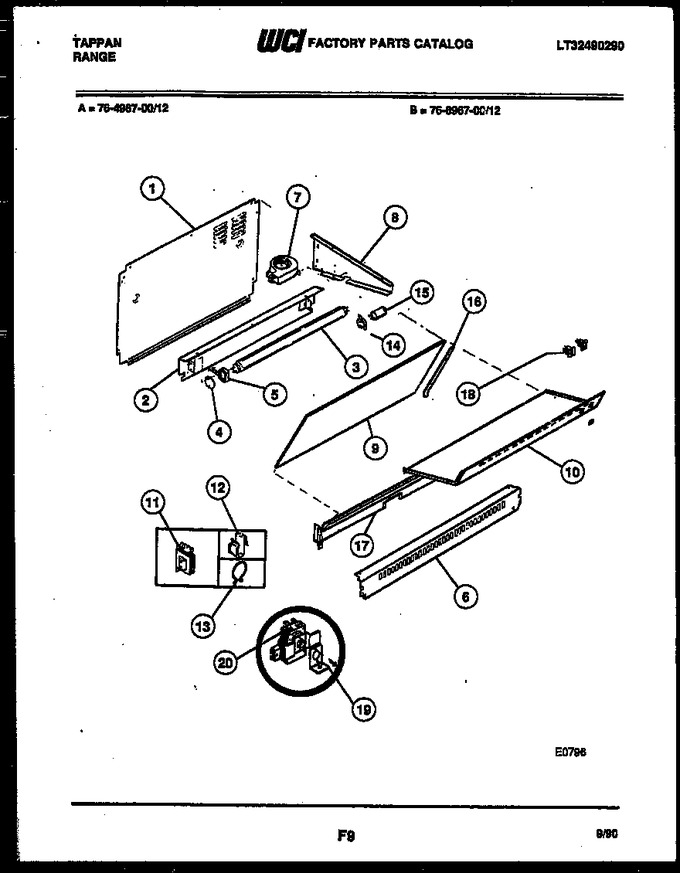

Diagram for 76-4967-00-12
