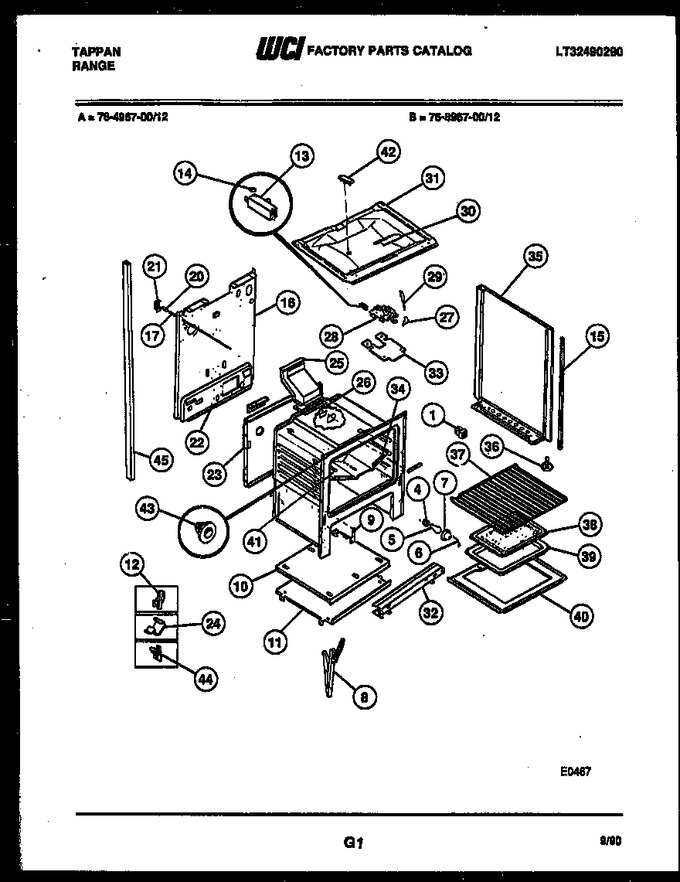

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer-bodyside, (8)				$ 3.62
4	3014073		Socket-oven Light		Appelez-nous	-
5	5303208582		Light Bulb		Appelez-nous	-
6	3204483		Wire, Glass Retainer		Appelez-nous	-
7	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
8	5303051414		Chnl Dr. Hng. (2)		Appelez-nous	-
9	3131570		Cover Hng. Cutout (2)				$ 7.35
10	3131951		Shield-heat-upper		Appelez-nous	-
11	3131313		Shield-heat-lower		Appelez-nous	-
12	08067754		Clip-thermo Bulb (2)		Appelez-nous	-
13	3131672		Switch, Latching		Appelez-nous	-
14	08067776		Fstnr., Push On (3)		Appelez-nous	-
15	5303051326		Trim-bodyside		Appelez-nous	-
16	3203082		Back-main		Appelez-nous	-
17	5303209316		Rod Light		Appelez-nous	-
20	5303202622		Switch, Door		Appelez-nous	-
21	5303131289		Brkt-light Switch		Appelez-nous	-
22	3131590		Shield-wall-rear		Appelez-nous	-
23	08067991		Shield, Heat		Appelez-nous	-
24	3011813		Clip-wire				$ 14.79
25	3131931		Flue		Appelez-nous	-
26	08067965		Gskt. Flue		Appelez-nous	-
27	3203218		Knob-latch		Appelez-nous	-
28	5303015453		Latch-door				$ 172.04
29	5303131357		Handle-latch				$ 37.33
30	08067757		Cover Plate		Appelez-nous	-
31	3011597		Burner Box		Appelez-nous	-
32	3200835		Shield, Main Front		Appelez-nous	-
33	3131314		Shield-oven-top		Appelez-nous	-
34	3200836		Shield-heat Baffle		Appelez-nous	-
35	3200790		Pnl-bodyside Rh-almond		Appelez-nous	-
35	3200789		Pnl-bodyside Rh-white		Appelez-nous	-
35	3201001		Pnl Bodyside Rh-black		Appelez-nous	-
35	3200791		Pnl-bodyside Rh-wheat		Appelez-nous	-
36	3206285		Screw-leveling (4)		Appelez-nous	-
37	5303131973		Rack, Oven (2)		Appelez-nous	-
38	5303131356		Insert-broiler Pan		Appelez-nous	-
39	5303013568		Pan-broiler		Appelez-nous	-
40	3011519		Bttm-oven		Appelez-nous	-
41	5303211414		Probe - Roast Cntl		Appelez-nous	-
42	3015371		Cover-burner Box		Appelez-nous	-
43	102T044P02		Buttn Remote Lt. Sw.		Appelez-nous	-
44	3051162		Glide Util Drawer			Immediately	$ 8.22
45	5303208642		Tube-post Lh		Appelez-nous	-
*40749	3200833		Insulation-wrapper		Appelez-nous	-
*40749	3934056		Anti-tip Brkt		Appelez-nous	-
*40749	3200834		Shield - Bodyside		Appelez-nous	-
*40749	316282700		Screw-oven Bttm.   (Replaces: 3131732)				$ 9.93
*40749	5303208643		Tube-post Rh		Appelez-nous	-
*40750	3051413		Shield-bi Metal		Appelez-nous	-
*40750	3131593		Shield-latch		Appelez-nous	-
11A	08067992		Shield, Wool (non-illustrated)		Appelez-nous	-
14A	08067978		Stup Spacer (2) (non-illustrated)		Appelez-nous	-
15A	3200594		Cord - Power (non-illustrated)		Appelez-nous	-
26A	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
35A	3200793		Pnl-bodyside Lh-almond		Appelez-nous	-
35A	3200792		Pnl-bodyside Lh-white		Appelez-nous	-
35A	3200794		Pnl-bodyside Lh-wheat		Appelez-nous	-
35A	3201000		Pnl Bodyside Lh-black		Appelez-nous	-
41A	3014226		Support Ovn Bottm. (non-illustrated)		Appelez-nous	-
41B	3131903		Bumper				$ 55.36
43A	08067961		Fastener-power Cord		Appelez-nous	-
43B	3204582		Insul.-wool (back) (non-illustrated)		Appelez-nous	-
43C	3131304		Insul Wool Top (non-illustrated)		Appelez-nous	-
43D	08067973		Insul - Front Frm (non-illustrated)				$ 51.74
43E	08068018		Shield, Wire (non-illustrated)		Appelez-nous	-
7A	3131143		Screw Chanl. Mtg. (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
