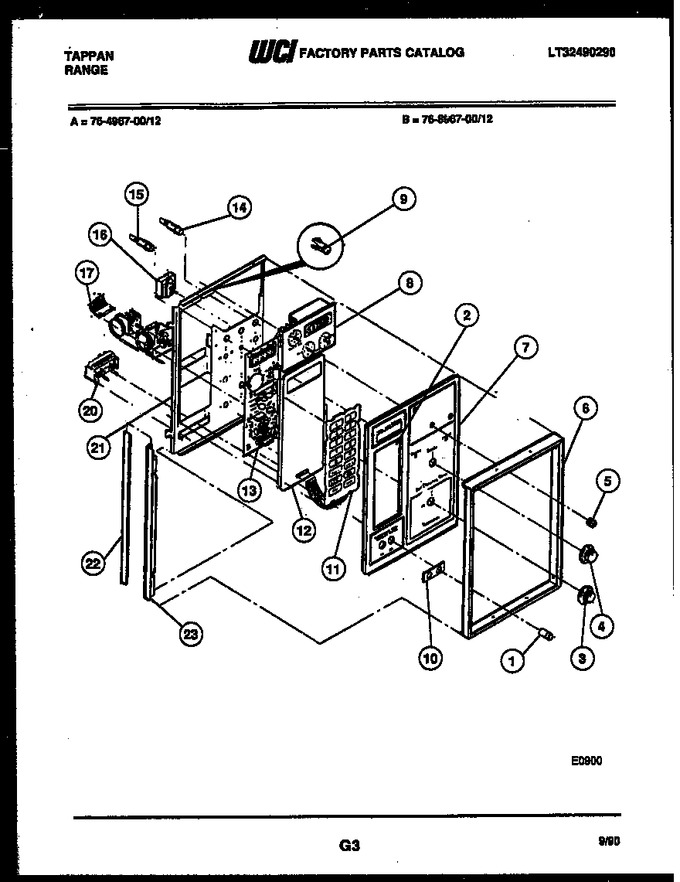

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303091544 | Button (2) |
|
- | |||||
| 2 | 5308037890 | Trim |
|
- | |||||
| 3 | 5303091408 | Knob Oven Set |
|
- | |||||
| 4 | 5303091400 | Knob - Oven Temp |
|
- | |||||
| 5 | 5303208334 | Knob-clock (3) |
|
- | |||||
| 6 | 5308011886 | Trim Control Pnl |
|
- | |||||
| 7 | 5303091409 | Glass Panel |
|
- | |||||
| 8 | 5303091385 | Clock - Digital |
|
- | |||||
| 9 | 5308010409 | Fastener - Clock |
|
- | |||||
| 10 | 3091375 | Bezel |
|
- | |||||
| 11 | 5303091395 | Switch Touch Membrane |
|
- | |||||
| 12 | 5303207857 | Panel - Switch |
|
- | |||||
| 13 | 5308012868 | Circuit Board |
|
- | |||||
| 14 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 15 | 5308008904 | Screw - Board (4) |
|
- | |||||
| 16 | 5303091345 | Switch 5 Pol. |
|
- | |||||
| 17 | 3016756 | Thermostat Oven |
|
- | |||||
| 20 | 5308008910 | Switch On/off |
|
- | |||||
| 21 | 5303091468 | Control Panel |
|
- | |||||
| 22 | 5308010420 | Seal |
|
- | |||||
| 23 | 5303200599 | Cover - Seal |
|
- | |||||
| *40754 | 5303013874 | Screw Trim (2) |
|
$ 5.04 | |||||
| *40754 | 5308014510 | Spacer Cntrl Pnl (2) |
|
- | |||||
| *40754 | 5308010401 | Bushing Glass (2) |
|
- | |||||
| *40754 | 636T096P23 | Screw Sw. (4) |
|
- | |||||
| *40754 | 5308037903 | Shield - Switch |
|
- | |||||
| 17A | 636T096P23 | Screw Switch (2) (non-illustrated) |
|
- |
