Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3131957 Trim Manifold Appelez-nous -
2 3131695 Knob-top Valve (4) Appelez-nous -
3 3013818 Rod Main Supt (2) Appelez-nous -
4 3934034 Main Top (chrome) Appelez-nous -
4 3934009 Main Top-almond Appelez-nous -
4 3934008 Main Top-white Appelez-nous -
4 3934010 Main Top-wheat Appelez-nous -
5 08067746 Brkt, Main Top (lh) Appelez-nous -
6 08067747 Brkt, Main Top (rh) Appelez-nous -
7 3051354 Trim, Main Top, Lh Appelez-nous -
8 3051355 Trim, Main Top (rh) Appelez-nous -
9 3018432 Grate Top Appelez-nous -
10 3131299 Pan-burner (4) Appelez-nous -
11 08068000 Cap Manfld Trim Lh Appelez-nous -
12 08068001 Cap Manfld Trim Rh Appelez-nous -
13 3131441 Dial-top Valve\(4) Appelez-nous -
14 3131891 Glass Trim Appelez-nous -
*40771 3206266 Retainer Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

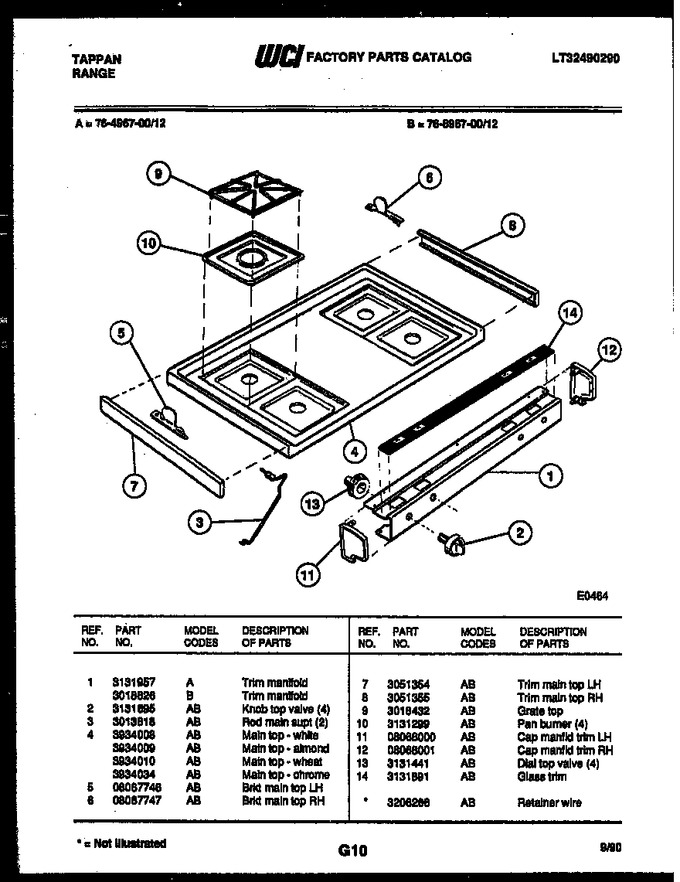

Diagram for 76-4967-00-12
