Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303210379 Baffle, Broil Special Order $ 175.88

2 3131284 Baffle-oven Special Order $ 155.77

3 08067935 Burner-broiler Special Order $ 142.59

4 3131290 Burner-oven Appelez-nous -
5 5303011567 Burner Top Assy. Appelez-nous -
6 3018617 Retainer, Igniter Appelez-nous -
7 5303131970 Burner Tube Frnt Rf/lf Appelez-nous -
8 5303011569 Burner-tube-rr Appelez-nous -
9 5303011570 Burner-tube-lr Appelez-nous -
11 08067945 Ferrule (4) Appelez-nous -
12 5303131105 Igniter-top Burner (4) Appelez-nous -
13 3131440 Manifold Pipe Appelez-nous -
14 5303017846 Valve 3 Pos. Special Order $ 162.02

15 08067948 Elbow 1/2 Np 9/16-24 Appelez-nous -
16 5303131580 Switch Ign. Appelez-nous -
17 5303935068 Igniter-broiler Burner   (Replaces: 5308067970) Special Order $ 166.55

18 5303935066 Igniter-oven   (Replaces: 5303131300) In-Stock Immediately $ 59.58

19 5303200669 Igniter-module Appelez-nous -
20 5303208640 Mixer Elbow Appelez-nous -
21 3131358 Hex Nut Appelez-nous -
22 3131261 Fitting, Loxit Appelez-nous -
23 5303208495 Tube - Alum 3/8 Appelez-nous -
24 5303208494 Tube - Alum 3/8 Appelez-nous -
25 5303208493 Tube - Alum 3/8 Appelez-nous -
26 5303208499 Valve Safety In-Stock Immediately $ 559.67

27 5303208498 Control, Regulator Appelez-nous -
28 08067934 Brkt Regulator Appelez-nous -
29 154079601 Nut-10-24 Hex   (Replaces: 5303013272) Special Order $ 0.41

30 08068015 Spud No. 50 Appelez-nous -
31 3013279 Nut, Special Special Order $ 2.34

32 3206267 Channel-flash Tube Special Order $ 46.04

*40732 3051420 Pop Rivet Appelez-nous -
15A 3131148 Nut, Compression (4) (non-illustrated) Appelez-nous -
22A 597T040P01 Recept Fuse (non-illustrated) Appelez-nous -
26A 3131598 Washer (repair) (non-illustrated) Appelez-nous -
26B 3131737 Washer, Black (non-illustrated) Special Order $ 5.59


    View Diagram in Separate Window     Print Icon   Print Part List

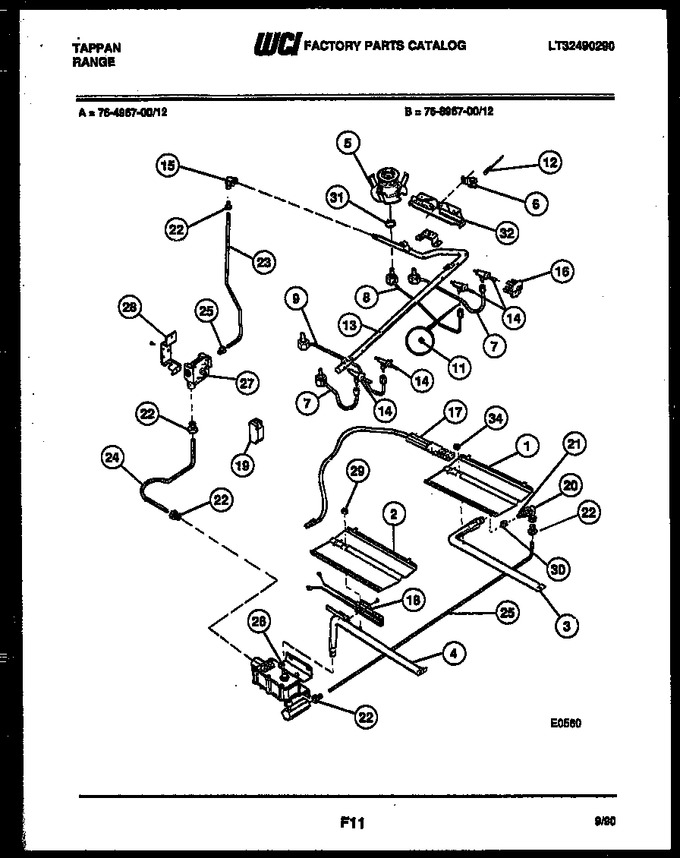

Diagram for 76-4967-00-12
