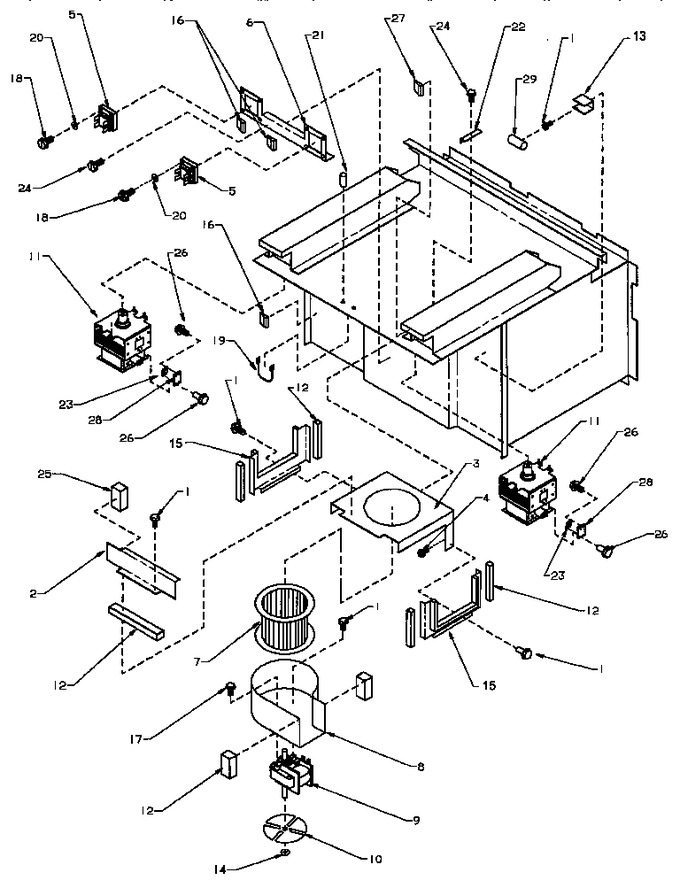

01 - Cavity & Chassis Assy, & Elec Compnt


02 - Cavity Assy & Electrical Components


03 - Chassis Assy & Electrical Components


04 - Control Panel Assy


05 - Door Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
2	B5778001		End Plate		Appelez-nous	-
3	C8707804		Bracket		Appelez-nous	-
4	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
5	C8807807		Transformer, Filament		Appelez-nous	-
6	D7705301		Brkt Transformer		Appelez-nous	-
6	C8902001		Bracket Frame		Appelez-nous	-
7	C3670802		Wheel, Blower		Appelez-nous	-
8	C8710701		Wldmt-blower Scroll		Appelez-nous	-
9	R0156503		Kit, Motor		Appelez-nous	-
10	B5706702		Fan Blade-blower		Appelez-nous	-
11	C8761713		Magnetron		Appelez-nous	-
12	A3030341		Gasket		Appelez-nous	-
13	10091101		Fuse Holder		Appelez-nous	-
14	M0118901		Clip		Appelez-nous	-
15	D7832201		End Plate, Air Duct.		Appelez-nous	-
16	M0104102		Clip, Cord				$ 8.10
17	M0251028		Screw, T.c.		Appelez-nous	-
18	M0218136		Screw		Appelez-nous	-
19	B8353203		Thermal Fuse W/terminals		Appelez-nous	-
20	M0272803		Lock Washer		Appelez-nous	-
21	M0325401		Bushing,terminal		Appelez-nous	-
22	B5774402		Brkt-mag Tube		Appelez-nous	-
23	B5684109		Protector, Thermal		Appelez-nous	-
24	R9800670		Kit, Screw   (Replaces: M0211030)				$ 8.44
25	A3030303		Gasket (per Foot)		Appelez-nous	-
26	M0232012		Screw		Appelez-nous	-
27	M0118802		Clip-cord		Appelez-nous	-
29	14QBP25BAN		Fuse, 25 Amp   (Replaces: M0805201)		Appelez-nous	-
