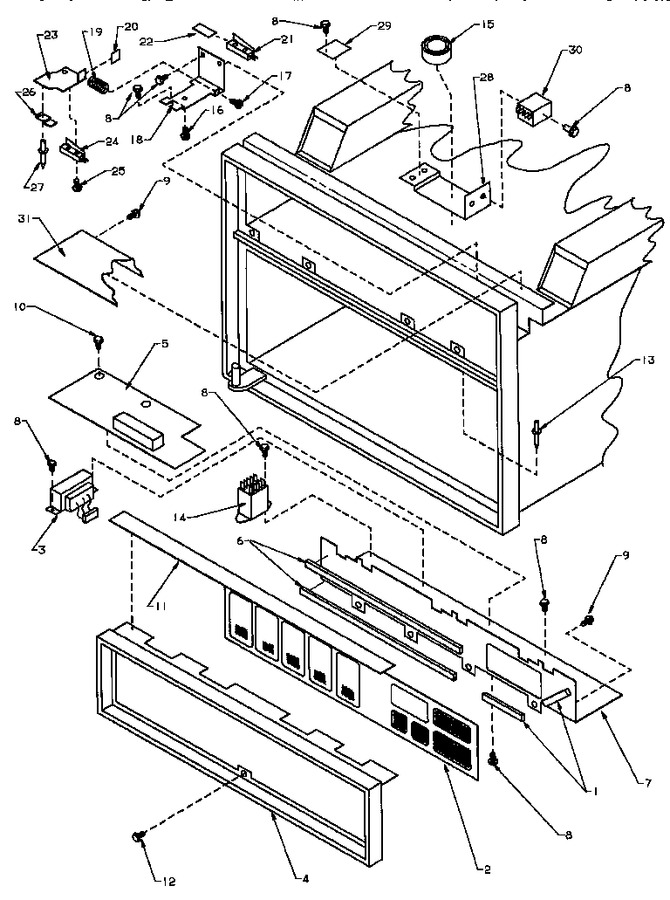

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A4591135		Gasket		Appelez-nous	-
2	D7577807		Assy, Switch &ind.		Appelez-nous	-
3	C8901202		Transformer Control		Appelez-nous	-
4	D7292202		Frame-timer		Appelez-nous	-
5	R163115A		Digital Timer		Appelez-nous	-
6	A4591140		Gasket		Appelez-nous	-
7	10394202		Bracket, Timer Mtg		Appelez-nous	-
8	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
9	M0253704		Screw A K		Appelez-nous	-
10	M0590602		Support P-c Bd A		Appelez-nous	-
11	A3030344		Gasket		Appelez-nous	-
12	M0230820		Screw		Appelez-nous	-
13	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
14	C8845502		Relay		Appelez-nous	-
15	B5602811		Motor		Appelez-nous	-
16	M1205109		Rivet A-k		Appelez-nous	-
17	M0211025		Screw		Appelez-nous	-
18	B8332501		Bracket Interlock		Appelez-nous	-
19	A3277701		Spring A		Appelez-nous	-
20	M0288010		Speed Nut		Appelez-nous	-
21	C3670014		Switch-interlock (limit)		Appelez-nous	-
22	M0289505		Speednut		Appelez-nous	-
23	C8875301		Bracket		Appelez-nous	-
24	B8324002		Intlk Sw-weld		Appelez-nous	-
25	M0213123		Screw		Appelez-nous	-
26	B8321802		Clip		Appelez-nous	-
27	A4539601		Pop Rivet		Appelez-nous	-
28	D7695901		Plate Mtg		Appelez-nous	-
29	C8988704		Terminal Board		Appelez-nous	-
30	C8873928		Relay, Control		Appelez-nous	-
31	10020101		Spill Shield		Appelez-nous	-
