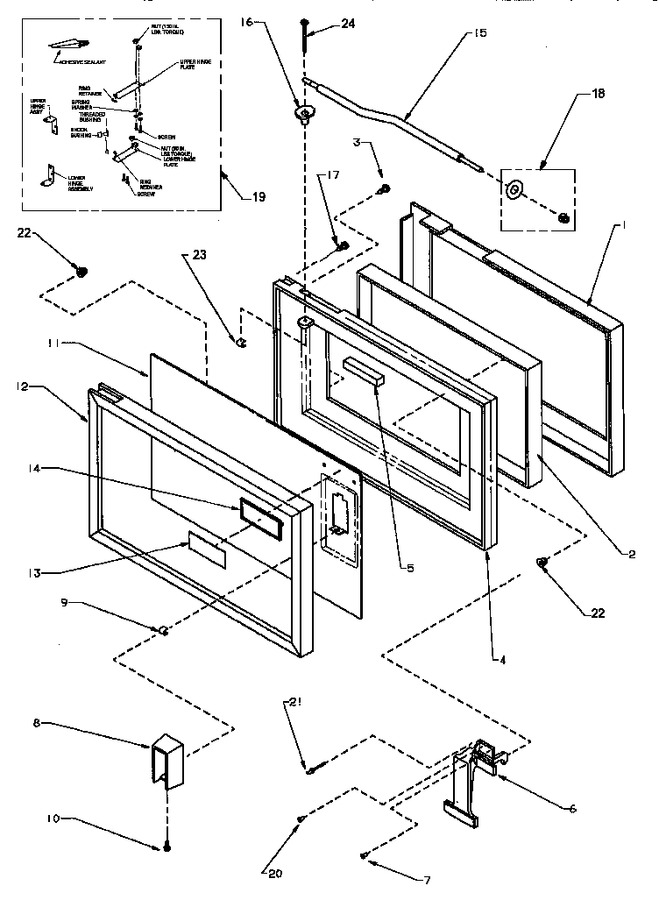

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7670501		Gasket, Door		Appelez-nous	-
2	D7143803		Door-inner		Appelez-nous	-
3	M0253418		Screw		Appelez-nous	-
4	D7132505		Weld, Inner Door Ring		Appelez-nous	-
5	A4591128		Gasket		Appelez-nous	-
6	R0157316		T Handle Kit		Appelez-nous	-
7	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
8	B5671901		Bezel-door Handle		Appelez-nous	-
9	M0288102		Speed Nut		Appelez-nous	-
10	M0230017		Screw,tc		Appelez-nous	-
11	D7578101		Panel, Outer Door		Appelez-nous	-
12	D7667702		Ring, Outer Door		Appelez-nous	-
13	C8904616		Insert Medallion		Appelez-nous	-
14	C3668803		Escutcheon		Appelez-nous	-
15	B5748702		Arm, Dr Stop K		Appelez-nous	-
16	A3185001		Bushing-door Arm		Appelez-nous	-
17	M0253230		Screw		Appelez-nous	-
18	R0163286		Assy, Dr Arm Shk Bush		Appelez-nous	-
19	R0156889		Assy, Door Hinge		Appelez-nous	-
20	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 12.78
21	B5642906		Rivet, Pop (wht)		Appelez-nous	-
22	M0288801		Nut K		Appelez-nous	-
23	M0118905		Clip Push On		Appelez-nous	-
24	B8372701		Pin Mtg		Appelez-nous	-
NI	M0275154		Tape Per Roll		Appelez-nous	-
NI	M0275501		Sealer		Appelez-nous	-
