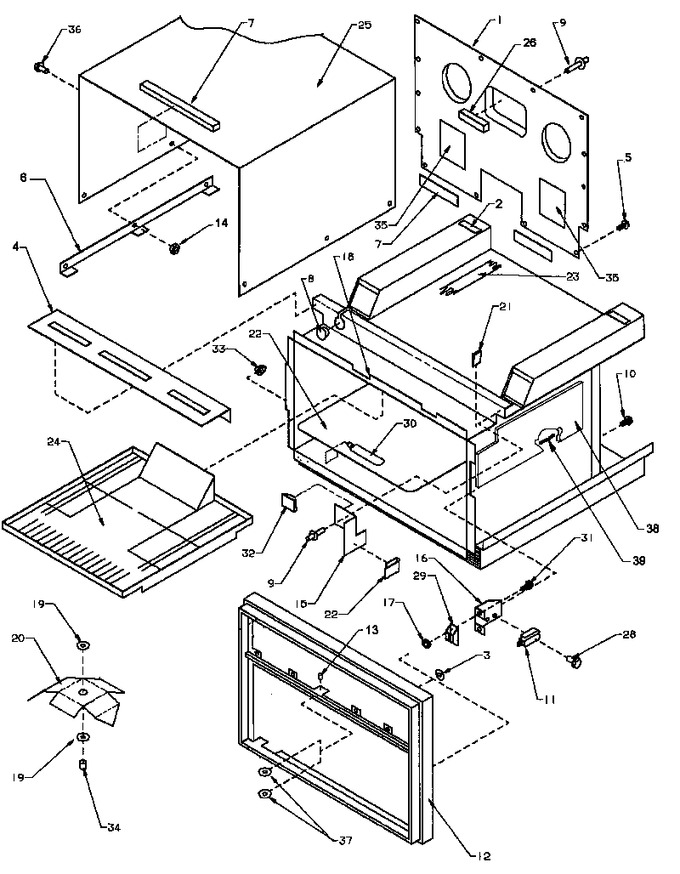

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8801117		Panel, Access Pntd		Appelez-nous	-
2	A4591129		Gasket K		Appelez-nous	-
3	M0120002		Nut K		Appelez-nous	-
4	10429301		Sheild, Drip		Appelez-nous	-
5	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
6	C8812901		Guide-strip		Appelez-nous	-
7	A3030301		Gasket (inch)		Appelez-nous	-
8	A3293503		Snap Bushing		Appelez-nous	-
9	A4539601		Pop Rivet		Appelez-nous	-
10	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
11	A3163415		Switch, Preform		Appelez-nous	-
12	D7666402		Bezel-outercase		Appelez-nous	-
13	A3181801		Guide-door Stop		Appelez-nous	-
14	WP3400029		Nut   (Replaces: M0282010)			Immediately	$ 6.98
15	B8349201		Bracket, Harness		Appelez-nous	-
16	B5675403		Bracket-latch		Appelez-nous	-
17	M0270502		Washer		Appelez-nous	-
18	10459502		Weld, Oven Cavity		Appelez-nous	-
19	A3109101		Washer		Appelez-nous	-
20	C8708601		Stirrer Blade (antenna)		Appelez-nous	-
21	M0118801		Clip		Appelez-nous	-
22	B5795002		Tray-oven		Appelez-nous	-
23	M0275036		Tape-k		Appelez-nous	-
24	D7457103		Shield,splatter		Appelez-nous	-
25	D7379605		Wrapper-oc		Appelez-nous	-
26	B8343701		Gasket		Appelez-nous	-
28	M0227520		Screw		Appelez-nous	-
29	C3680202		Strike-latch		Appelez-nous	-
30	M0275501		Sealer		Appelez-nous	-
31	M0216517		Screw		Appelez-nous	-
32	M0104102		Clip, Cord				$ 8.10
33	M0283801		Nut, Self Thread		Appelez-nous	-
34	M0114002		Clip		Appelez-nous	-
35	A3205602		Insulation		Appelez-nous	-
36	M0207943		Screw		Appelez-nous	-
37	A3182101		Bushing		Appelez-nous	-
38	10750101		Insulation, Oven		Appelez-nous	-
39	M0275501		Sealer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
