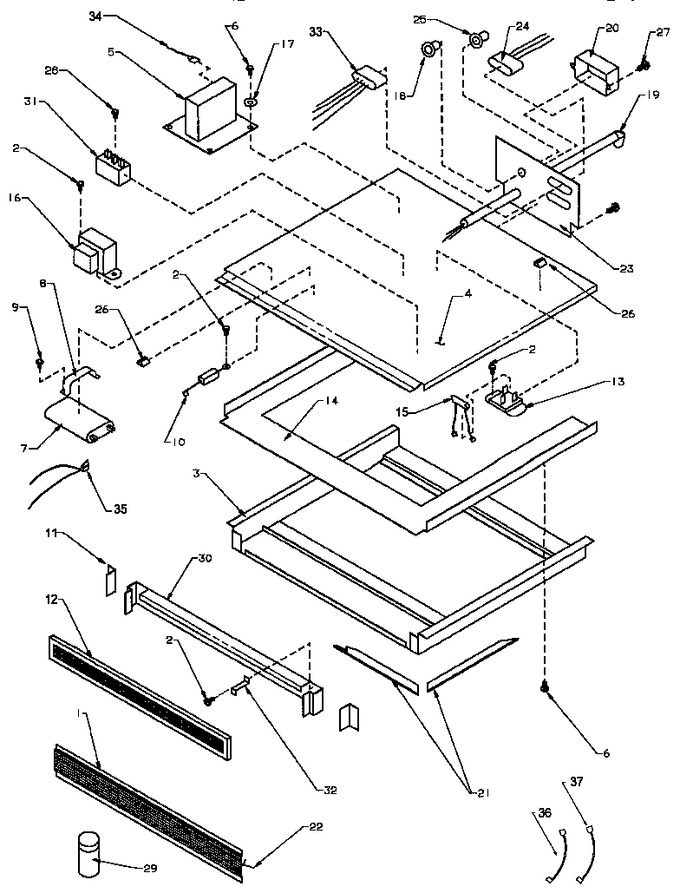

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8708502		Grille Air Inlet		Appelez-nous	-
2	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
3	D7732802		Basepan Weld		Appelez-nous	-
4	D7573604		Chassis		Appelez-nous	-
5	10222103		Transformer-high Voltage, 208/		Appelez-nous	-
6	M0253543		Screw K		Appelez-nous	-
7	D8547927		Capacitor-.69		Appelez-nous	-
8	A4055405		Strap, Capacitor		Appelez-nous	-
9	M0216517		Screw		Appelez-nous	-
10	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
11	B8392501		Guide, Filter		Appelez-nous	-
12	B5714801		Filter		Appelez-nous	-
13	D7681501		Triac				$ 44.05
14	C8775302		Oven Mtg Plate		Appelez-nous	-
15	10172902		Snubber Assembly		Appelez-nous	-
16	C8901502		Transformer, Auto		Appelez-nous	-
17	M0272805		Lock Washer		Appelez-nous	-
18	A3293501		Bushing		Appelez-nous	-
19	B5731701		Kit,cord		Appelez-nous	-
20	B8334701		Can, Capacitor		Appelez-nous	-
21	10732501		Gasket,basepan		Appelez-nous	-
22	M0321212		Tie-elect.		Appelez-nous	-
23	10429702		Strain Releif		Appelez-nous	-
24	B8393001		Wire Assy		Appelez-nous	-
25	M0370007		Strain Relief		Appelez-nous	-
26	M0104102		Clip, Cord				$ 8.10
27	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
28	M0234117		Screw		Appelez-nous	-
29	A3204901		Thermal Compound K		Appelez-nous	-
30	C8890002		Ass`y, Air Inlet		Appelez-nous	-
31	B5677203		Terminal Block		Appelez-nous	-
32	B8364201		Spring		Appelez-nous	-
33	B8393103		Harness, Wiring		Appelez-nous	-
34	D7365136		Jumper Wire		Appelez-nous	-
34	D7717030		Wire Jumper		Appelez-nous	-
35	D7365139		Wire Jumper		Appelez-nous	-
36	D7365130		Jumper Wire		Appelez-nous	-
37	D7365129		Jumper Wire		Appelez-nous	-
NI	10091701		Wire Harness		Appelez-nous	-
