02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - Ice Door, Dispenser And Water Tank


08 - Ice Dispenser


09 - Ice Maker Parts


10 - System And Automatic Defrost Parts

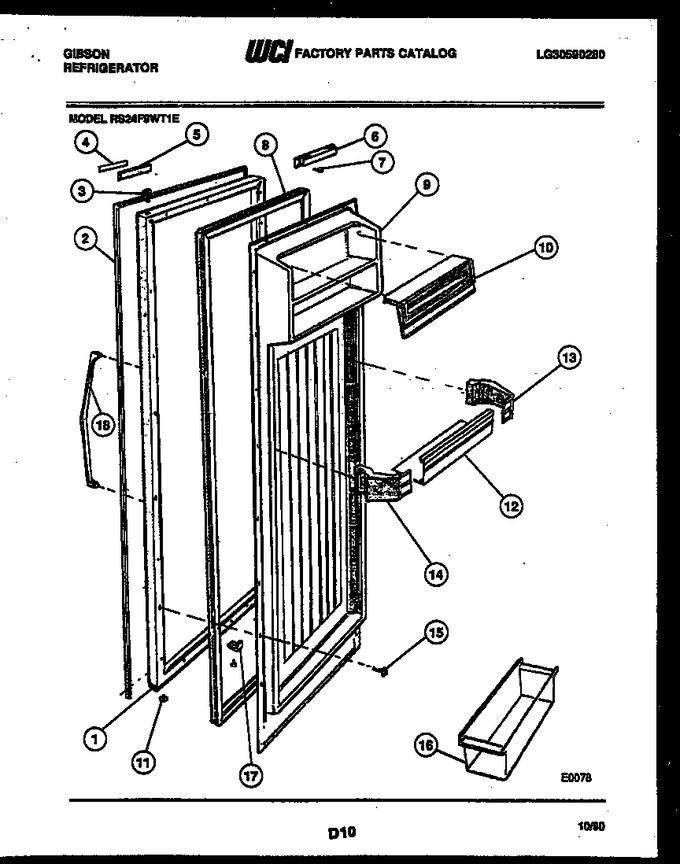

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	530177745		Refr Door - White		Appelez-nous	-
1	G177745-08		Refr Door-avocado		Appelez-nous	-
1	G177745-09		Refr Door-wheat		Appelez-nous	-
1	G177745-10		Refr Door-coffee		Appelez-nous	-
1	G177745-11		Refr Door-almond		Appelez-nous	-
2	G167404-08		Trim-refrigerator Door		Appelez-nous	-
3	5303001022		Bearing-upper Hinge		Appelez-nous	-
4	3019041		Label-nameplate Lwr		Appelez-nous	-
5	5317511702		Frame - Nameplate		Appelez-nous	-
6	5303200272		Door Closer		Appelez-nous	-
7	3001020		Screw-closer Mtg		Appelez-nous	-
8	5303200473		Gasket-refr Door		Appelez-nous	-
9	G171411-02		Panel-inner Door		Appelez-nous	-
10	G170930-14		Dairy Door (2)		Appelez-nous	-
11	5308012007		Bearing-lower Hinge		Appelez-nous	-
12	5303206688		Door Shelf (4)		Appelez-nous	-
13	5303206682		Support Rh (4)		Appelez-nous	-
14	5303206683		Support Lh (4)		Appelez-nous	-
15	218843801		Screw   (Replaces: 5303001001)				$ 14.41
16	5317394819		Egg Container		Appelez-nous	-
17	5308000790		Bumper, Light Switch				$ 3.86
18	5316355201		Handle - Refr Door		Appelez-nous	-
*22360	G176752		Shim-handle (2)		Appelez-nous	-
*22361	G185565		Screw-handle Mounting (2)		Appelez-nous	-
17A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
1A	5315230801		Door Plug-bottom (non-illustrated)		Appelez-nous	-
4A	G188378-06		Label-nameplate Upr		Appelez-nous	-
