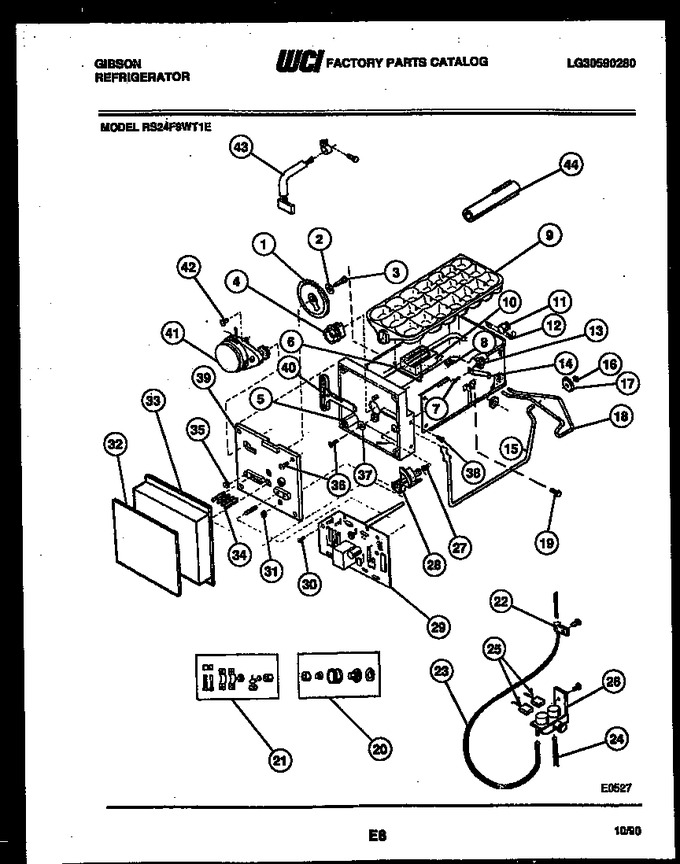

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5301124984 | Gear-crank |
|
- | |||||
| 2 | 5303001117 | Washer - Crank Gear Shaft |
|
- | |||||
| 3 | 5303001119 | Shaft-crank Gear |
|
- | |||||
| 4 | 5301124972 | Gear-sliding Spur |
|
- | |||||
| 5 | 5303001143 | Housing-mechanism |
|
- | |||||
| 6 | 5301138379 | Retainer-insulator |
|
$ 3.89 | |||||
| 7 | 5301121694 | Screw - Spring |
|
- | |||||
| 8 | 5303001125 | Retainer - Shut Off Wire (2) |
|
- | |||||
| 9 | 5302832432 | Tray - Ice |
|
$ 71.72 | |||||
| 10 | 5303001141 | Insulator-thermostat |
|
$ 23.52 | |||||
| 11 | 5300618683 | Pivot-tray |
|
- | |||||
| 12 | 5303001132 | Spring-tray Return |
|
- | |||||
| 13 | 5301121693 | Nut, Push-in |
|
- | |||||
| 14 | 5301121700 | Spring-tray Restrainer |
|
- | |||||
| 15 | 5300175315 | Extension Frame |
|
- | |||||
| 16 | 5301138171 | Ring - Retaining |
|
- | |||||
| 17 | 5301123459 | Bearing-gauge Arm |
|
- | |||||
| 18 | 5301138222 | Wire - Automatic Shut Off |
|
- | |||||
| 19 | 5301124988 | Arm-sensing |
|
- | |||||
| 20 | 3206360 | Water - Supply Adaptor |
|
$ 94.66 | |||||
| 21 | 65801LF | Saddle-valve Kit (Replaces: 5308000247) |
|
Immediately | $ 8.27 | ||||
| 22 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 23 | 5303015131 | Tube-valve To Filler Tube |
|
- | |||||
| 24 | 5303015130 | Tube - Water Inlet |
|
- | |||||
| 25 | 5308017050 | Wiring - Harness Lower |
|
- | |||||
| 26 | 5308017599 | Water Valve-dual Solenoid |
|
$ 67.90 | |||||
| 27 | 5303001139 | Spring-sensing Arm |
|
- | |||||
| 28 | 5301124983 | Cam-ice Level |
|
- | |||||
| 29 | 5308011238 | Pc Board - Thermistor |
|
- | |||||
| 30 | 5301124507 | Screw - Board To Plate (2) |
|
- | |||||
| 31 | 5308010348 | Clip - Ice Level Cam |
|
- | |||||
| 32 | G185971 | Label-ice Maker |
|
- | |||||
| 33 | 5317770906 | Front - Ice Maker |
|
- | |||||
| 34 | 5301124987 | Follower - Cam (5) |
|
- | |||||
| 35 | 5303001118 | Nut - Mounting Plate |
|
- | |||||
| 36 | 5308010350 | Screw - Plate To Housing (5) |
|
- | |||||
| 37 | 5301124979 | Washer-flat (2) |
|
- | |||||
| 38 | 3001020 | Screw - Housing To Frame (4) |
|
- | |||||
| 39 | 5301124981 | Plate-mounting |
|
- | |||||
| 40 | 5303001136 | Rack-gear |
|
- | |||||
| 41 | 5301124982 | Motor |
|
- | |||||
| 42 | 5301124507 | Screw - Motor To Plate (5) |
|
- | |||||
| 43 | 5303001245 | Wiring Harness - Ice Maker |
|
- | |||||
| 44 | 5308015765 | Tube-filler Extension |
|
- | |||||
| *22405 | 5303001147 | Plug-harness Hole, (2) |
|
$ 22.30 | |||||
| 24A | 5308010269 | Tube - Water Inlet (non-illustrated) |
|
- | |||||
| 24B | 5303001191 | Sleeve - Insert (non-illustrated) |
|
$ 6.72 | |||||
| 26A | 5303015102 | Cap-water Valve (non-illustrated) |
|
- | |||||
| 34A | 5303001216 | Washer - Nylon (non-illustrated) |
|
- | |||||
| 34B | 5308012818 | Guide - Icemaker Screw (non-illustrated) |
|
- |
