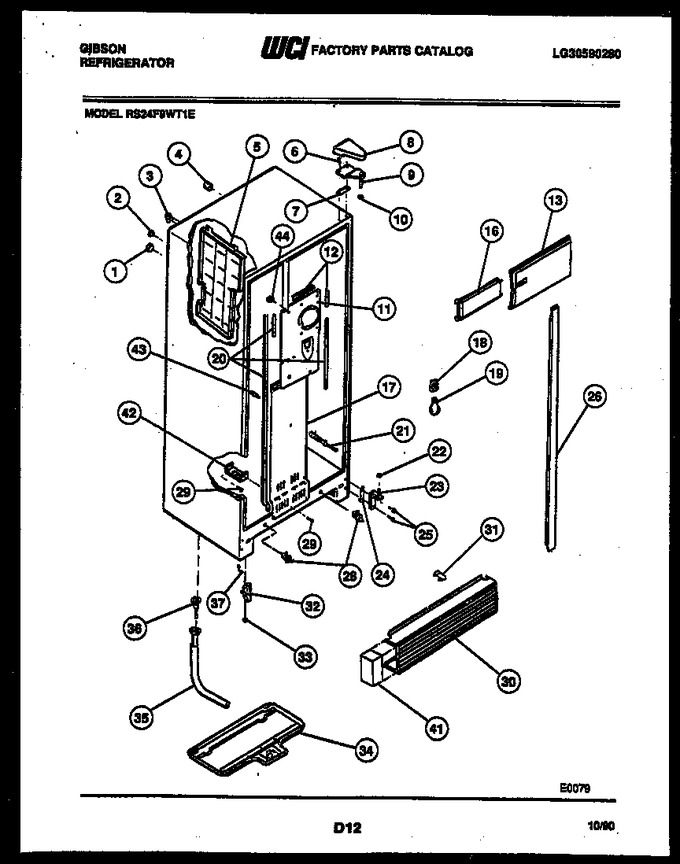

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001286 | Ferrule-inner (2) |
|
- | |||||
| 2 | 5303001287 | Ferrule-outer (2) |
|
- | |||||
| 3 | 5308010269 | Tube-filler To Ice Maker |
|
- | |||||
| 4 | 5303001198 | Tube-rubber |
|
- | |||||
| 5 | 5308010353 | Divider - Ice And Water |
|
- | |||||
| 6 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 7 | 5303001037 | Shim-top Hinge (2) |
|
$ 12.39 | |||||
| 8 | 5303001666 | Hinge Cover, Coffee |
|
- | |||||
| 8 | 5303001665 | Hinge Cover, Wheat |
|
- | |||||
| 8 | 5308012820 | Hinge Cover, White |
|
- | |||||
| 8 | 5308012933 | Hinge Cover, Almond |
|
- | |||||
| 8 | 5303001664 | Hinge Cover, Avocado |
|
- | |||||
| 9 | 5308012934 | Hinge Top, Rh |
|
- | |||||
| 10 | 5308000186 | Washer-hinge (2) |
|
Immediately | $ 6.02 | ||||
| 11 | 5303001222 | Coil Cover - Upper |
|
- | |||||
| 12 | 5303001219 | Gasket-coil Cover (2) |
|
- | |||||
| 13 | 3015073 | Light Shield-refr |
|
- | |||||
| 16 | G174712-01 | Light Shield-freezer |
|
- | |||||
| 17 | 3001232 | Coil Cover - Lower |
|
- | |||||
| 18 | 218906802 | Light Socket, Freezer (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 19 | 5303001179 | Light Bulb-freezer |
|
- | |||||
| 20 | 5303001233 | Gasket Kit, Coil Cover |
|
- | |||||
| 21 | 5316491203 | Damper, Meat Keeper |
|
- | |||||
| 22 | 5303001038 | Washer-hinge |
|
$ 13.34 | |||||
| 23 | 5303001271 | Hinge-bottom-rh |
|
$ 102.38 | |||||
| 24 | 5303001272 | Shim - Bottom Hinge (3) |
|
- | |||||
| 25 | 5303001041 | Screw-hinge Mtg. (2) |
|
- | |||||
| 26 | 5303916448 | Mullion, Almond |
|
- | |||||
| 26 | 5303916444 | Mullion-white |
|
- | |||||
| 26 | 3916445 | Mullion, Avocado |
|
- | |||||
| 26 | 5303916447 | Mullion, Coffee |
|
- | |||||
| 26 | 3916446 | Mullion, Wheat |
|
- | |||||
| 28 | 5303208475 | Light Switch (2) |
|
- | |||||
| 29 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 30 | 5303001032 | Grille |
|
- | |||||
| 31 | 5308000847 | Clip-grille |
|
$ 5.39 | |||||
| 32 | 5308000118 | Roller Assy (4) |
|
- | |||||
| 33 | 5308017044 | Screw-roller Mtg (4) |
|
$ 6.34 | |||||
| 34 | 5303001026 | Defrost Pan |
|
- | |||||
| 35 | 5303209723 | Drain Outlet And Tube |
|
- | |||||
| 36 | 5308000853 | Heat Conductor |
|
- | |||||
| 37 | 5308010289 | Elbow-water Tube |
|
$ 45.84 | |||||
| 41 | 5317465801 | Cover-bottom Hinge |
|
- | |||||
| 42 | 5308000738 | Bracket-cover Mtg |
|
- | |||||
| 43 | 5303001250 | Support-coil Cover (4) |
|
- | |||||
| 44 | 5308000097 | Support-coil Cover |
|
- | |||||
| *22376 | 5308012296 | Plate-tapping (2) |
|
$ 47.44 | |||||
| *22376 | 5303001288 | Plug, Refrigerator Liner (4) |
|
- | |||||
| 11A | 5303209814 | Nut U, Type (2) (non-illustrated) |
|
- | |||||
| 11B | 5303208309 | Plug-short Test Hole (non-illustrated) |
|
$ 45.50 | |||||
| 13A | 5303001213 | Support - Spec Barrel - Refr Light Shield (2) (non-illustrated) |
|
- | |||||
| 21A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 23A | 5303001043 | Hinge-bottom Lh (non-illustrated) |
|
- | |||||
| 23B | 5303001273 | Twin Nut (4) (non-illustrated) |
|
- | |||||
| 24A | 5308000013 | Shoulder Pin (2) (non-illustrated) |
|
- | |||||
| 24B | 5300077210 | Speed Nut (2) (non-illustrated) |
|
- | |||||
| 26A | 5300169100 | Clip - Mullion (3) (non-illustrated) |
|
- | |||||
| 26B | 5303001281 | Clip-mullion (3) (non-illustrated) |
|
- | |||||
| 32A | 5308009568 | Bolt - Adj - 5/16 X 24 X 3/4 (4) (non-illustrated) |
|
- | |||||
| 37A | 5308000200 | Nut-nylon 7/16-20 (non-illustrated) |
|
- | |||||
| 42A | 5308010292 | Screw - Bracket (non-illustrated) |
|
- | |||||
| 9A | 5303001062 | Hinge - Top Lh (non-illustrated) |
|
$ 117.02 |
