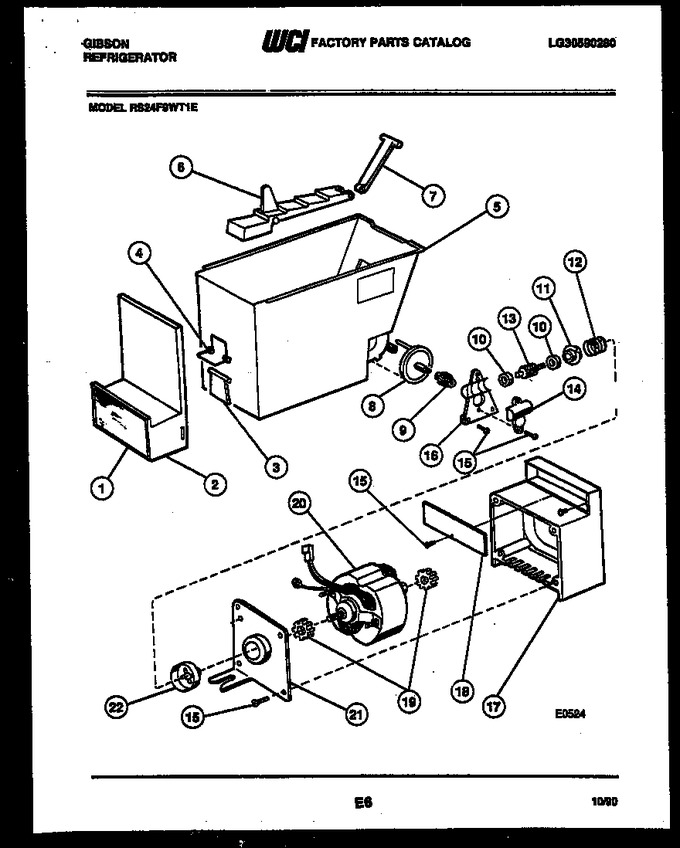

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G185970		Label-ice Container		Appelez-nous	-
2	G174416-05		Front - Ice Container		Appelez-nous	-
3	5317440701		Door-ice Container		Appelez-nous	-
4	5300184853		Spring - Door		Appelez-nous	-
5	G177213-04		Container-ice		Appelez-nous	-
6	5301123547		Ram-ice Dispenser		Appelez-nous	-
7	5303205890		Deflector - Ice Dispenser		Appelez-nous	-
8	5301123568		Disc-ice Ram Drive		Appelez-nous	-
9	5301123566		Gear - Ice Ram Drive		Appelez-nous	-
10	5301123508		Bearing (2)		Appelez-nous	-
11	5308017407		Coupling - Ice Dispenser		Appelez-nous	-
12	5301123767		Spring - Motor Drive		Appelez-nous	-
13	5301124161		Gear - Ice Ram Drive		Appelez-nous	-
14	5301123570		Cover-housing		Appelez-nous	-
15	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
16	5300174408		Housing-ice Ram Drive		Appelez-nous	-
17	5308010343		Housing-motor		Appelez-nous	-
18	5308010346		Cover - Housing		Appelez-nous	-
19	5301123769		Mount-ice Dispenser Motor (2)		Appelez-nous	-
20	5308017049		Motor - Ice Ram		Appelez-nous	-
21	5303001106		Bracket-motor		Appelez-nous	-
22	5301123771		Coupling-ice Dispenser Motor		Appelez-nous	-
1A	5303016895		Label - Ice Dispenser (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
