Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5308002744 Channel - Rs And Ls Appelez-nous -
2 5303209744 Frame-shelf (4) Appelez-nous -
3 5303211143 Trim - Shelf Rear (4) Appelez-nous -
4 5303211142 Trim - Shelf Front (4) Appelez-nous -
5 5303211144 Glass - Shelf (4) Appelez-nous -
6 G179709-03 Pan-storage Upper Appelez-nous -
7 5316971102 Cover, Pan Upper Appelez-nous -
8 G177343-12 Trim-pan Upper Appelez-nous -
9 G177343-11 Trim-pan Lower Appelez-nous -
10 G179710-02 Pan-storage Lower Appelez-nous -
11 5316972401 Cover-pan (lower) Appelez-nous -
12 3017945 Basket-freezer Appelez-nous -
13 3017946 Trim-basket Appelez-nous -
14 5303001098 Hanger, Basket, Rh Appelez-nous -
15 5303001099 Hanger, Basket, Lh Appelez-nous -
16 3017947 Shelf-freezer Bottom Appelez-nous -
17 3017948 Trim - Clip On (3) Appelez-nous -
18 3017949 Shelf-freezer Ctr (2) Appelez-nous -
20 5303001104 Shelf-plastic (lower) Appelez-nous -
21 5303001152 Shelf-plastic-upper Appelez-nous -
22 R000900930 Tank-water Appelez-nous -
23 5303001185 Support-tank (3) Appelez-nous -
24 5318582501 Tube-cut To Size (2) Appelez-nous -
25 5300166705 Clamp - Tube (2) Appelez-nous -
26 5308015614 Connector-tube (2) Special Order $ 34.57

27 5308015613 Grommet-tank (2) Appelez-nous -
28 5308007097 Screw (3) Appelez-nous -
29 5308010332 Cover-water Tank Appelez-nous -
30 5308010367 Support - Spec Barrel - Fzr Light Shield (2) Appelez-nous -
31 5303001211 Support-spec Screw Mtg, Im Divider, (2) Appelez-nous -
32 3001212 Screw-divider Supt (2) Appelez-nous -
*22382 5303001291 Support-ice Maker (2) Appelez-nous -
1A 5308010253 Screw - Channel Mounting (8) (non-illustrated) Appelez-nous -
20A 5317770602 Label-lower Shelf (non-illustrated) Appelez-nous -
21A 5317770601 Label - Upper Shelf (non-illustrated) Appelez-nous -
5A 5303209742 Glass - Retainer (4) (non-illustrated) Appelez-nous -
7A 5303205880 Gasket - Cover Upper (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

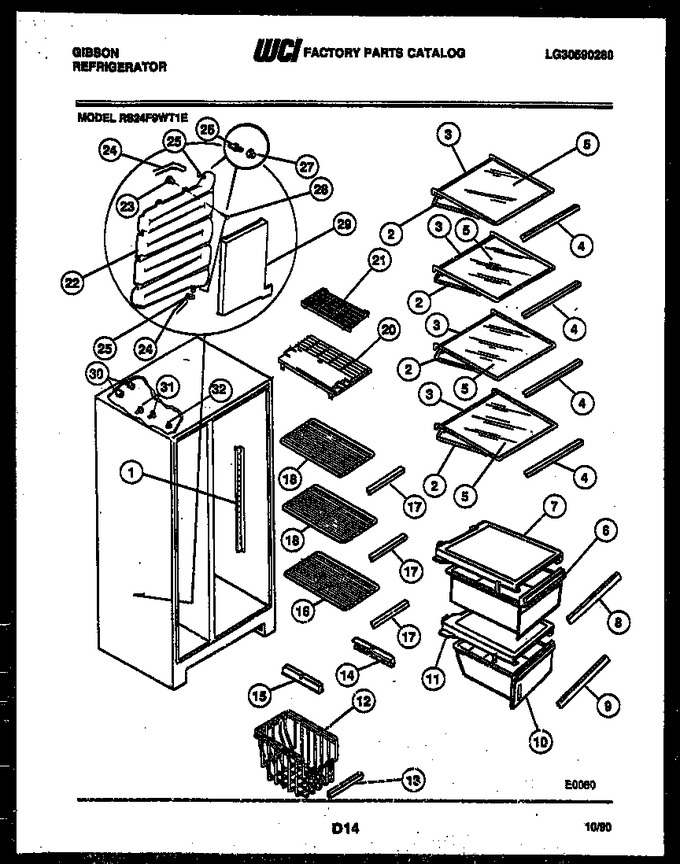

Diagram for RS24F9WT1E
