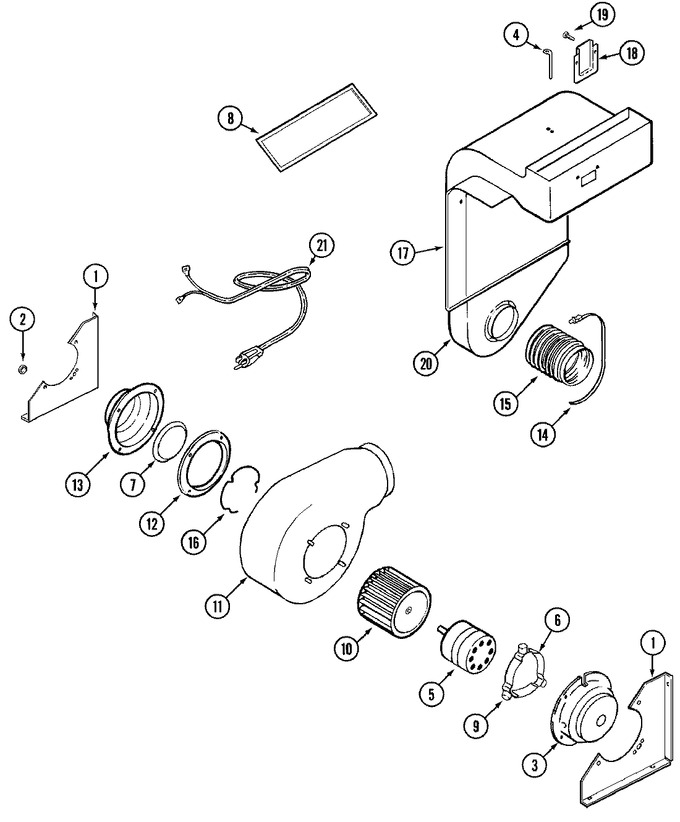

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Access Panel
02 - Blower Motor-cooling
03 - Blower Motor-plenum
04 - Body
05 - Control Panel
06 - Door
07 - Internal Controls
08 - Oven
09 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3801F631-51 | Bracket, Mount (Replaces: Y702294) | 11 |
|
$ 70.98 | ||||
| 2 | WPY707702 | Locknut (Replaces: Y707702) | 11 |
|
Immediately | $ 6.26 | |||
| 3 | Y704760 | Cover, Motor | 11 |
|
- | ||||
| 4 | Y702656 | Stop, Filter | 11 |
|
- | ||||
| 5 | Y715957 | Foam, Urethane | 11 |
|
- | ||||
| 5 | Y704759 | Motor | 11 |
|
- | ||||
| 6 | Y707393 | Band, Motor | 11 |
|
- | ||||
| 7 | Y704761 | Ring, Restrictor | 11 |
|
- | ||||
| 8 | WP71002111 | Filter, Grease (Replaces: Y715290) | 11 |
|
Immediately | $ 33.49 | |||
| 9 | WP71003558 | Isolator (Replaces: Y708926) | 11 |
|
$ 11.47 | ||||
| 10 | WPY707985 | Wheel, Blower (Replaces: Y707985) | 11 |
|
Immediately | $ 145.55 | |||
| 11 | 712008 | Scroll, Blower Assy. | 11 |
|
- | ||||
| 12 | Y704758 | Ring, Inlet | 11 |
|
- | ||||
| 13 | Y702296 | Adapter, Restrictor Ring | 11 |
|
- | ||||
| 14 | Y702331 | Clamp, Hose | 11 |
|
- | ||||
| 15 | Y702326 | Duct, Flexible | 11 |
|
$ 77.46 | ||||
| 16 | Y704762 | Retainer | 11 |
|
- | ||||
| 16 | Y700556 | Clip, J | 11 |
|
- | ||||
| 17 | WP71001171 | Screw (Replaces: Y712004) | 11 |
|
$ 6.26 | ||||
| 17 | 712025 | Plenum, Upper | 11 |
|
- | ||||
| 18 | Y702475 | Cover, Vent | 11 |
|
- | ||||
| 19 | W11233072 | Screw (Replaces: Y707347) | 11 |
|
Immediately | $ 12.62 | |||
| 20 | 712007 | Plenum, Lower Assembly | 11 |
|
- | ||||
| 21 | Y702733 | Cord, Power (motor) | 11 |
|
- | ||||
| 21 | Y702696 | Strain, Relief | 11 |
|
- | ||||
| 21 | 702735 | Cord, Receptacle Motor | 11 |
|
- |
