SELECT A DIAGRAM

01 - Access Panel


02 - Blower Motor-cooling


03 - Blower Motor-plenum


04 - Body


05 - Control Panel


06 - Door


07 - Internal Controls


08 - Oven


09 - Top Assembly

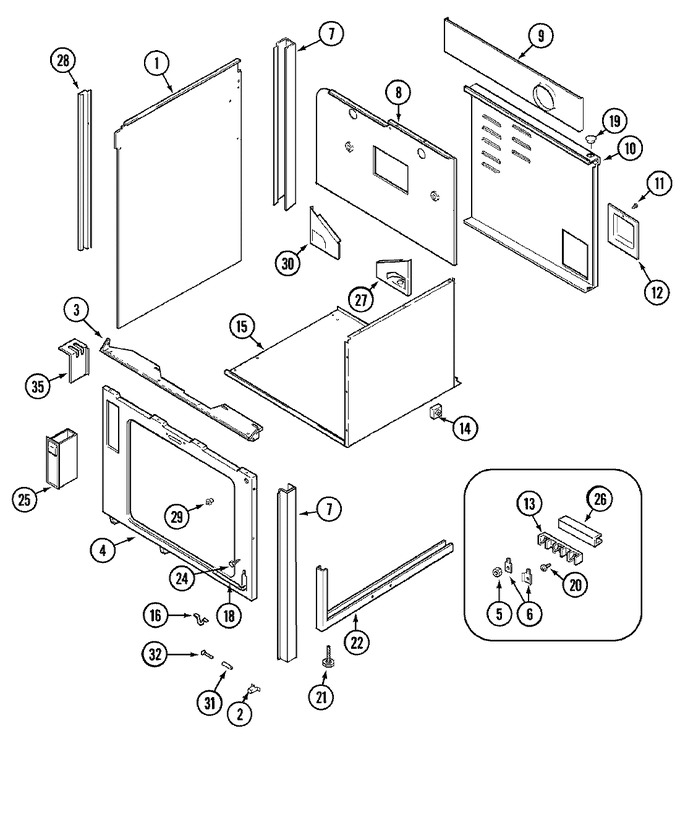

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y702301		Panel, Side (lt)	11	Appelez-nous	-
2	708763		Clip----s	11	Appelez-nous	-
3	712002		Angle, Mount	11	Appelez-nous	-
4	702329		Closure, Front	11	Appelez-nous	-
5	707161		Nut	11	Appelez-nous	-
6	Y702335		Strap, Ground	11	Appelez-nous	-
6	703648		Harness, Backsplash	11	Appelez-nous	-
7	704296		Support,tube	11	Appelez-nous	-
8	Y704735		Back, Inner	11	Appelez-nous	-
9	Y702345		Plate, Back	11	Appelez-nous	-
10	702307		Cover, Rear (lower)	11	Appelez-nous	-
11	WPY706189		Screw   (Replaces: 700906)	11		Immediately	$ 6.47
12	702333		Cover, Access(r.h)	11	Appelez-nous	-
13	WP8203546		Block, Terminal   (Replaces: Y702284)	11		Immediately	$ 27.12
14	704355		Switch, Broil Cycle	11	Appelez-nous	-
15	702336		Angle, Oven Support	11	Appelez-nous	-
15	Y702319		Panel, Bottom & Side (rt)	11	Appelez-nous	-
16	702658		Bracket, Hat	11	Appelez-nous	-
17	DE81-09758A		Panel, Side (rt)   (Replaces: 702300)	11			$ 1,127.72
18	Y703419		Hinge	11	Appelez-nous	-
19	Y702696		Strain, Relief	11	Appelez-nous	-
20	WP71001171		Screw   (Replaces: Y712004)	11			$ 6.26
21	Y04100573		Leveler, Leg	11			$ 25.32
21	W11117769		Leveler,adjust   (Replaces: Y708696)	11		Immediately	$ 16.61
22	712000		Rail, Support Assembly	11	Appelez-nous	-
23	704466		Baffle, Inner	11	Appelez-nous	-
24	715870		Screw	11	Appelez-nous	-
25	Y712001		Container,grease Assembly	11	Appelez-nous	-
26	702898		Insulator	11	Appelez-nous	-
27	702556		Gussett (rt)	11	Appelez-nous	-
28	702337		Trim, Side	11	Appelez-nous	-
29	701666		Switch, Door	11	Appelez-nous	-
30	702557		Gussett (lt)	11	Appelez-nous	-
31	702745		Spacer	11	Appelez-nous	-
32	WP67006908		Screw   (Replaces: 712092)	11		Immediately	$ 7.16
