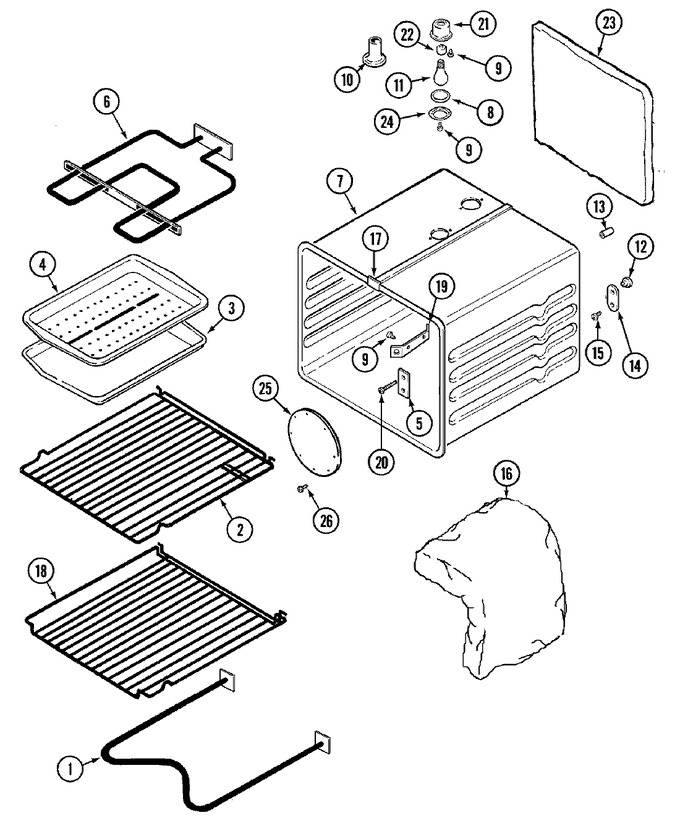

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY04100021		Element, Bake (240v)   (Replaces: Y704664)	11			$ 179.82
2	Y704660		Rack, Oven	11			$ 104.03
3	4396923		Pan, Broil   (Replaces: 703164)	11		Immediately	$ 52.04
4	4396923		Insert, Broil Pan   (Replaces: 703165)	11		Immediately	$ 52.04
5	Y705342		Cover, Sensor Hole	11	Appelez-nous	-
5	702643		Wire, Ground	11	Appelez-nous	-
6	WPY04100514		Element, Broil (240v)   (Replaces: Y704666)	11			$ 138.97
7	WP7101P434-60		Screw   (Replaces: 71001394)	11			$ 6.26
7	71001403		Washer, Alum	11	Appelez-nous	-
7	712584		Liner	11	Appelez-nous	-
7	12001404		Oven Liner Kit (27``-19)	13	Appelez-nous	-
8	Y704143		Lens, Light	11	Appelez-nous	-
9	WP1163283		Screw   (Replaces: Y703741)	11			$ 6.47
10	701738		Tube, Vent	11	Appelez-nous	-
11	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	11		Immediately	$ 16.80
12	715294		Nut, Tee	11	Appelez-nous	-
13	702745		Spacer	11	Appelez-nous	-
14	701742		Plate, Grounding	11	Appelez-nous	-
15	705170		Screw	11	Appelez-nous	-
16	702282		Insulation-sides,top,bottom	11	Appelez-nous	-
17	71001170		Clip, Oven	11	Appelez-nous	-
18	Y704662		Rack, Oven (offset)	11	Appelez-nous	-
19	Y701541		Clip, Bulb	11	Appelez-nous	-
20	WP179051		Screw   (Replaces: 708764)	11		Immediately	$ 7.16
21	704142		Receptacle, Holder	11	Appelez-nous	-
22	Y704145		Receptacle, Snap-in	11	Appelez-nous	-
23	702283		Insulation-back	11	Appelez-nous	-
24	Y704144		Retainer, Lens	11	Appelez-nous	-
25	705343		Plate, Non-convect	11	Appelez-nous	-
26	71001395		Screw	11	Appelez-nous	-
26	WP7101P434-60		Screw   (Replaces: 71001394)	11			$ 6.26
26	WP74003976		Washer   (Replaces: 702592)	11			$ 6.47
