01 - Access Panel
02 - Blower Motor-cooling
03 - Blower Motor-plenum
04 - Body
05 - Control Panel
06 - Door
07 - Internal Controls
08 - Oven
09 - Top Assembly
SELECT A DIAGRAM
New Model Search:

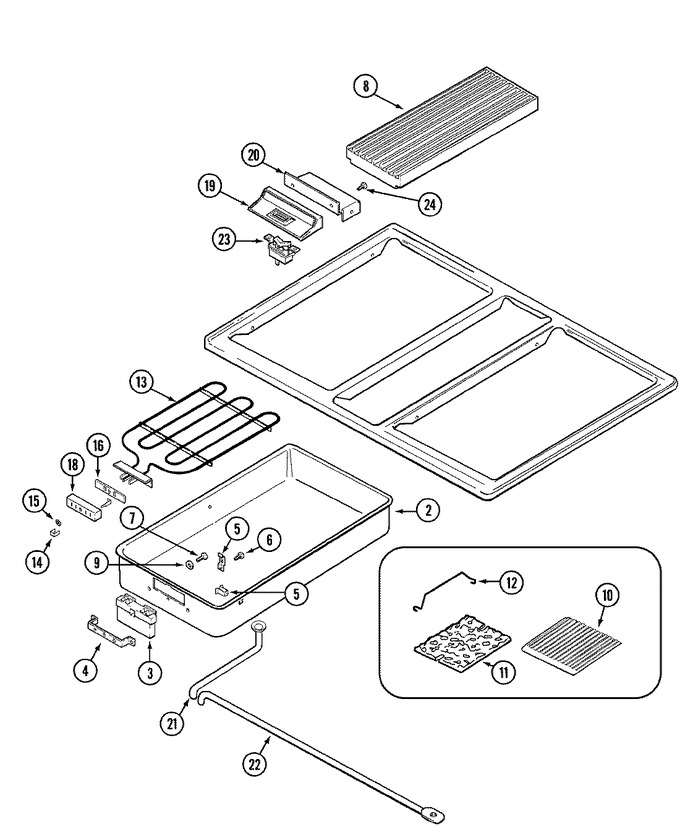

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701853 | Top | 11 |
|
- | ||||
| 2 | Y701956 | Pan, Grill (rt) | 11 |
|
- | ||||
| 2 | Y712229 | Kit, Wire | 11 |
|
$ 91.71 | ||||
| 2 | 701955 | Pan, Grill (lt) | 11 |
|
- | ||||
| 2 | 712228 | Kit, Wire | 11 |
|
$ 66.14 | ||||
| 3 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 11 |
|
Immediately | $ 96.61 | |||
| 4 | Y702698 | Bracket | 11 |
|
- | ||||
| 5 | 74004835 | Clip (Replaces: Y702699) | 11 |
|
$ 11.37 | ||||
| 6 | 00489128 | Screw (Replaces: Y705026) | 11 |
|
$ 773.97 | ||||
| 7 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 8 | 71001451 | Grill, Air (wht) | 11 |
|
- | ||||
| 9 | 702747 | Washer, Teflon | 11 |
|
- | ||||
| 10 | 702748 | Nut, Drain Tube | 11 |
|
- | ||||
| 10 | 703905 | Grate, Grill | 11 |
|
- | ||||
| 11 | 708929 | Plate, Rock | 11 |
|
- | ||||
| 12 | 700819 | Support, Rock Plate | 11 |
|
$ 71.81 | ||||
| 13 | 71001573 | Element, Grill | 11 |
|
- | ||||
| 14 | Y700450 | Clip, Shunt | 11 |
|
$ 9.51 | ||||
| 15 | Y708862 | Nut, Speed | 11 |
|
$ 13.08 | ||||
| 16 | Y700449 | Insulator | 11 |
|
- | ||||
| 17 | Y708572 | Spade, Contact | 11 |
|
Immediately | $ 11.34 | |||
| 18 | WPY708730 | Block, Terminal (Replaces: Y708730) | 11 |
|
Immediately | $ 87.44 | |||
| 19 | 71002519 | Escutcheon (wht) | 11 |
|
- | ||||
| 20 | Y04100754 | Bracket, Filler | 11 |
|
- | ||||
| 21 | Y702463 | Tube, Drain (left) | 11 |
|
- | ||||
| 22 | Y702327 | Tube, Drain (right) | 11 |
|
- | ||||
| 23 | 704478 | Switch, Fan (gry) | 11 |
|
- | ||||
| 24 | W11233072 | Screw (Replaces: Y708733) | 11 |
|
Immediately | $ 12.62 |
