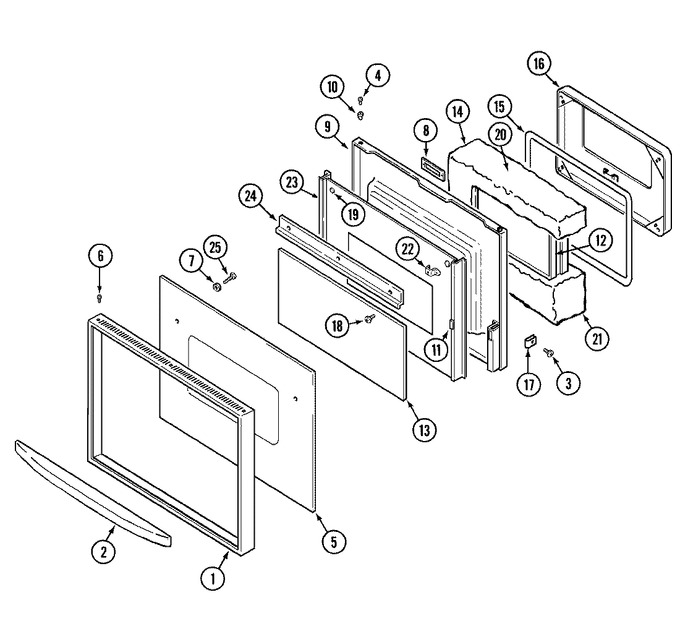

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Access Panel
02 - Blower Motor-cooling
03 - Blower Motor-plenum
04 - Body
05 - Control Panel
06 - Door
07 - Internal Controls
08 - Oven
09 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002511 | Frame (wht) | 11 |
|
- | ||||
| 2 | 71002513 | Handle, Door (wht) | 11 |
|
- | ||||
| 3 | 71002514 | Screw, Black | 11 |
|
- | ||||
| 4 | W11233072 | Screw (Replaces: Y708733) | 11 |
|
Immediately | $ 12.62 | |||
| 5 | 71002516 | Glass, Screened (wht) | 11 |
|
- | ||||
| 6 | WPY706189 | Screw (Replaces: Y706189) | 11 |
|
Immediately | $ 6.47 | |||
| 7 | Y700446 | Washer | 11 |
|
$ 5.27 | ||||
| 8 | Y712010 | Plate, Latch (upper) | 11 |
|
- | ||||
| 9 | 712632 | Door, Complete (white) | 11 |
|
- | ||||
| 9 | 712567 | Liner | 13 |
|
- | ||||
| 10 | 701643 | Nut, Push In | 11 |
|
- | ||||
| 10 | WP210720 | Rivet (Replaces: 701662) | 11 |
|
$ 12.14 | ||||
| 11 | 715938 | Pad, Spacer | 11 |
|
- | ||||
| 12 | 701648 | Window Pack | 11 |
|
- | ||||
| 13 | Y704820 | Glass, Baffle | 11 |
|
- | ||||
| 14 | 702293 | Insulation | 11 |
|
- | ||||
| 15 | WPY702338 | Seal, Oven Door (Replaces: Y702338) | 11 |
|
Immediately | $ 172.53 | |||
| 16 | 712011 | Plug, Oven Door Weld | 11 |
|
- | ||||
| 17 | 704487 | Clip | 11 |
|
- | ||||
| 18 | WPY706189 | Screw (Replaces: 700906) | 11 |
|
Immediately | $ 6.47 | |||
| 19 | Y704223 | Bumper, Button | 11 |
|
- | ||||
| 20 | 701660 | Insulation, Top | 11 |
|
- | ||||
| 21 | 702292 | Insulation, Bottom | 11 |
|
- | ||||
| 22 | 701652 | Bracket, Stand-off | 11 |
|
- | ||||
| 23 | 71001294 | Baffle, Door | 11 |
|
- | ||||
| 24 | Y704819 | Retainer, Glass | 11 |
|
- | ||||
| 25 | 71002517 | Screw | 11 |
|
- |
