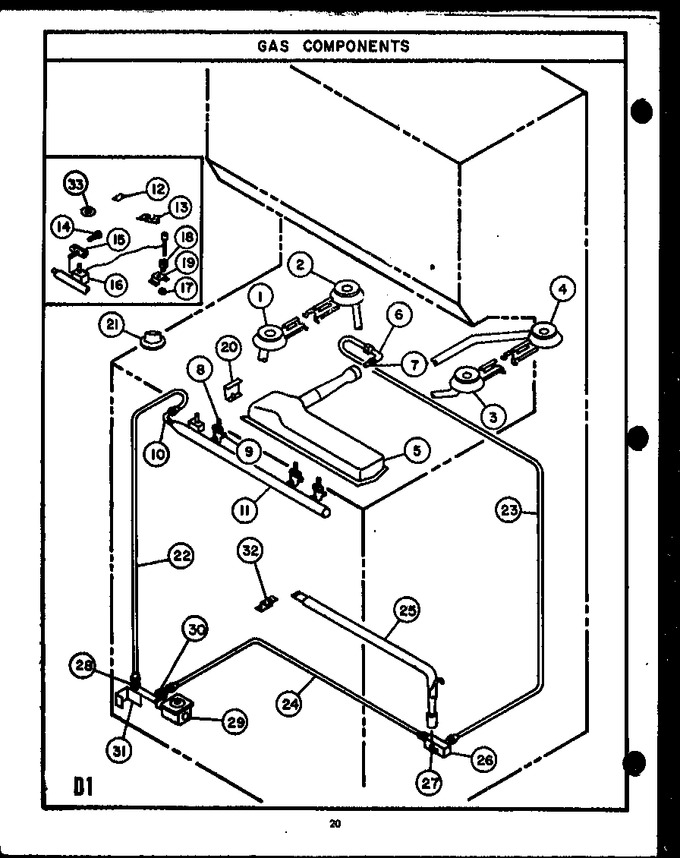

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y74379		Burner Assembly-left Front		Appelez-nous	-
2	Y74377		Burner Assembly-left Rear		Appelez-nous	-
3	74378		Burner Assembly-right Front		Appelez-nous	-
4	74376		Burner Assembly-right Rear		Appelez-nous	-
5	Y72218		Burner, Ultra Ray Broiler		Appelez-nous	-
6	79807		Fitting, Orfice - Broiler Burn		Appelez-nous	-
7	0097241		Orifice		Appelez-nous	-
7	Y0095632		Orifice Ultra Ray Burner 56		Appelez-nous	-
8	Y70568		Valve, Top Burner W/hood Univ.		Appelez-nous	-
9	0097617		Hood Orif Nbr 54		Appelez-nous	-
10	Y0094858		Elbow Fitting (90 Degree)		Appelez-nous	-
11	70594		Manifold		Appelez-nous	-
12	69804		Insulation, T-set Microswitch			Immediately	$ 89.78
13	70908		Bracket, T-set Microswitch		Appelez-nous	-
20	Y0092949		Broil Burner Mtg Bracket		Appelez-nous	-
21	68325		Knob Oven Control		Appelez-nous	-
21	68323		Knob, Top Burner		Appelez-nous	-
21	68328		Knob Selector				$ 109.44
22	Y72092		Tubing W/fittings - Inlet To M		Appelez-nous	-
23	Y69983		Tubing W/fittings-gas Valve To		Appelez-nous	-
24	69930		Tubing W/fittings-inlet To Gas		Appelez-nous	-
25	72488		Oven Burner-lower		Appelez-nous	-
26	70051		Gas Valve, Electric Univ.				$ 46.18
27	Y97640		Orifice Hood Univ.		Appelez-nous	-
28	72129		Straight Connector 3/8`` Fl. X				$ 17.39
29	70976		Rugular, Pressure - Univ.		Appelez-nous	-
30	74440		Valve, Shut Off		Appelez-nous	-
31	70236		Pipe Nipple Assembly		Appelez-nous	-
32	DE81-06773A		Mounting Bracket, Oven Burner   (Replaces: 72212)				$ 285.15
33	Y68120		Spring, Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
