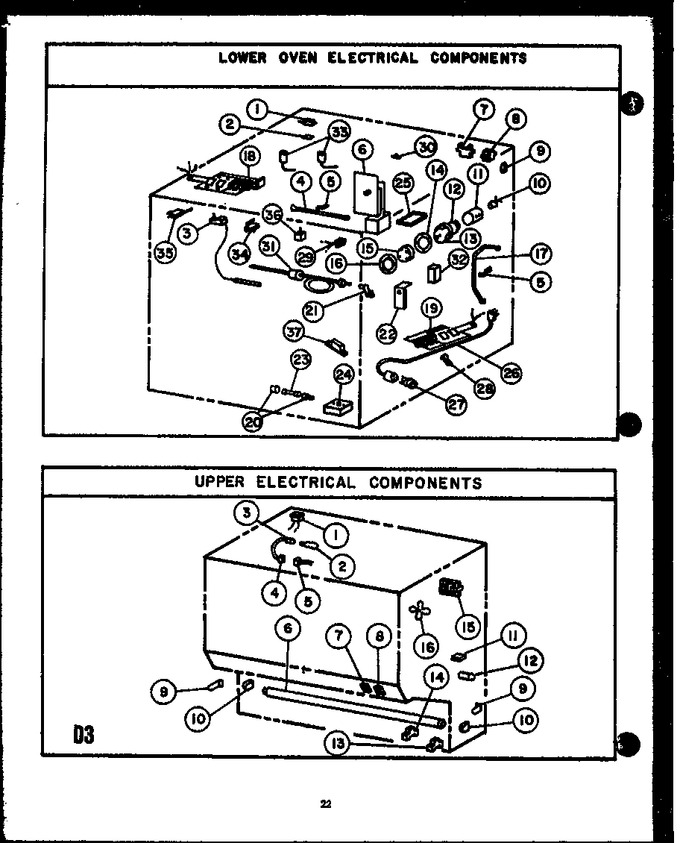

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1N4004		Outlet, Motor   (Replaces: 73027)		Appelez-nous	-
1	79659		Switch, Door Latch		Appelez-nous	-
2	68901		Lamp, Candelabra		Appelez-nous	-
2	79663		Insulation, Micro-switch		Appelez-nous	-
3	Y68882		Assembly Socket, Oven Lamp		Appelez-nous	-
3	70760		Clean, Bake/broil Thermostat		Appelez-nous	-
4	Y71770		Receptacle, Disconnect		Appelez-nous	-
5	Y71769		Plug, Disconnect		Appelez-nous	-
5	79164		Clamp, Shield		Appelez-nous	-
6	0095804		Flourescent Lamp		Appelez-nous	-
7	73020		Switch, Oven Light		Appelez-nous	-
8	73021		Switch, Surface Light		Appelez-nous	-
8	Y94943		Terminal Block, Upper		Appelez-nous	-
9	Y0094370		Socket Support Bracket		Appelez-nous	-
9	Y0098429		Clip Receptacle		Appelez-nous	-
10	Y74778		Lampholder, Flourescent		Appelez-nous	-
10	79394		Socket, Lamp		Appelez-nous	-
11	79757		Insulation Retainer, Oven Ligh		Appelez-nous	-
11	Y67302		Connector Housing, 4-circuit		Appelez-nous	-
12	79397		Housing Oven Light		Appelez-nous	-
12	67270		Line Splice		Appelez-nous	-
13	8009		Bulb - Light   (Replaces: 20478)			Immediately	$ 16.80
14	79812		Gasket, Oven Light		Appelez-nous	-
14	Y94943		Terminal Block, Upper		Appelez-nous	-
15	79865		Lens, Oven Light		Appelez-nous	-
15	68772		Motor Aux. Fan		Appelez-nous	-
16	79819		Retainer, Oven Light Lens		Appelez-nous	-
16	Y68753		Fan Blade		Appelez-nous	-
17	79393		Shield, Wire		Appelez-nous	-
18	Y0089333		Ignitor		Appelez-nous	-
19	68016		Ignitor Assembly - Bake		Appelez-nous	-
20	1N4004		Flex Tube, 3/4`` X 24``   (Replaces: 70405)		Appelez-nous	-
22	68869		Brkt,spark Module Mount X				$ 257.02
23	72211		Fuse, 5 Amp		Appelez-nous	-
24	68568		Timer, Clean 60 Hz				$ 759.62
26	68751		Supply Cord				$ 25.87
27	Y68699		Disconnect, Male		Appelez-nous	-
28	68513		Clamp, Power Cord		Appelez-nous	-
29	79426		Indicator Light		Appelez-nous	-
30	70927		Mounting Clip, Electrode		Appelez-nous	-
32	69251		Spark Module		Appelez-nous	-
33	68867		Assy`s Electrode - L.h.				$ 99.10
33	68866		Ass`y. Electrode - R.h.		Appelez-nous	-
34	70682		Switch, Top Burner Actuator		Appelez-nous	-
36	77160		Selector Switch		Appelez-nous	-
37	75059		Washer		Appelez-nous	-
NI	68277		Receptacle 20a, 125 Vac		Appelez-nous	-
NI	68260		Wall Plate, Receptacle				$ 21.20
