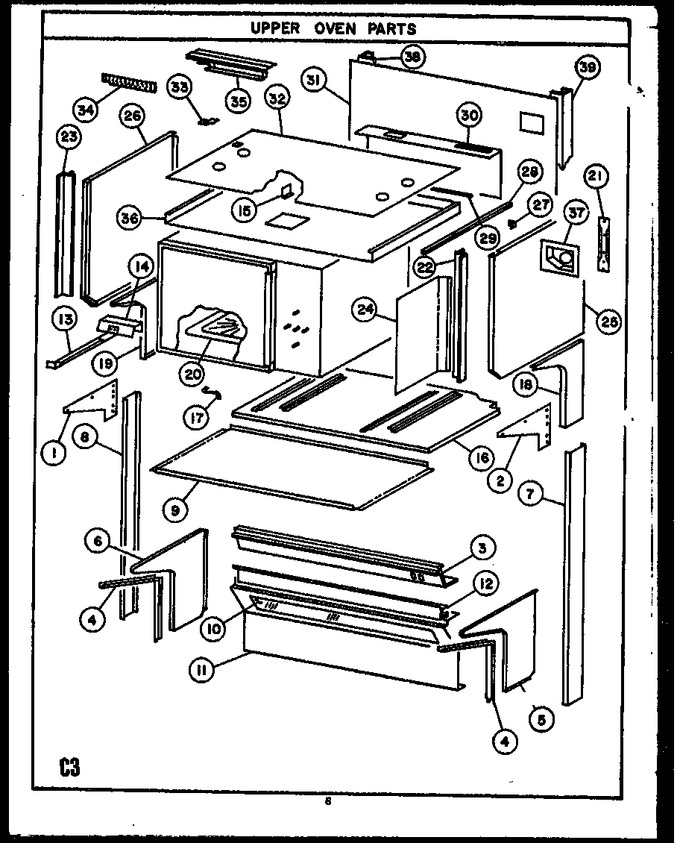

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 68597 | Brace, Upper Oven-l.h. |
|
- | |||||
| 2 | Y68596 | Brace, Upper Oven-r.h. |
|
- | |||||
| 3 | 67718 | Decorative Trim, Lower |
|
$ 57.96 | |||||
| 4 | 78043 | Trim Rail, Side Braces |
|
- | |||||
| 5 | 77996W | Inside Side Brace R.h. White |
|
- | |||||
| 5 | 77996V | Inside Brace-r.h., Avocado |
|
- | |||||
| 5 | 77996N | Inside Brace-r.h., Almond |
|
- | |||||
| 5 | 77996D | Inside Brace-r.h., Gold |
|
- | |||||
| 5 | 77996C | Inside Brace-r.h., Dark Copper |
|
- | |||||
| 6 | 77997C | Inside Side Brace-l.h., Dark C |
|
- | |||||
| 6 | 77997W | Inside Side Brace, L.h. White |
|
- | |||||
| 6 | 77997V | Inside Side Brace-l.h., Avocad |
|
- | |||||
| 6 | 77997D | Inside Side Brace-l.h., Gold |
|
- | |||||
| 6 | 77997N | Inide Side Brace-l.h., Almond |
|
- | |||||
| 7 | Y68758 | Support, Upper Oven - R.h. |
|
- | |||||
| 8 | Y68759 | Support, Upper Oven - L.h. |
|
- | |||||
| 9 | 68595 | Jacket Bottom |
|
- | |||||
| 10 | 0095909 | Glass Splash Plate |
|
- | |||||
| 11 | 78083V | Splashplate, Avocado |
|
- | |||||
| 11 | 78083N | Splashplate, Almond |
|
- | |||||
| 11 | 78083D | Splashplate, Gold |
|
- | |||||
| 11 | 78083W | Splashplate |
|
- | |||||
| 11 | 78083C | Splashplate, Dark Copper |
|
- | |||||
| 12 | 74094 | Filler Strip |
|
Immediately | $ 10.42 | ||||
| 13 | 68916 | Guide, Oven Light |
|
- | |||||
| 14 | 68918 | Bracket, Oven Lamp |
|
- | |||||
| 15 | 68917 | Side Shield, Oven Light |
|
- | |||||
| 16 | 69648 | Shelf, Upper Oven (Replaces: 68246) |
|
Immediately | $ 17.61 | ||||
| 17 | 69443 | Mounting Strap |
|
- | |||||
| 18 | 68779C | End Panel, Middle, R.h., Dark |
|
- | |||||
| 18 | 68779D | End Panel, Middle, R.h., Gold |
|
- | |||||
| 18 | 68779N | End Panel, Middle, R.h., Almon |
|
- | |||||
| 18 | 68779V | End Panel, Middle, R.h., Avoca |
|
- | |||||
| 18 | 68779W | End Panel, Middle, R.h. |
|
- | |||||
| 19 | 68780N | End Panel, Middle, L.h-, Almon |
|
- | |||||
| 19 | 68780C | End Panel, Middle, L.h-, Dark |
|
- | |||||
| 19 | 68780V | End Panel, Middle, L.h. |
|
- | |||||
| 19 | 68780D | End Panel, Middle, L.h-, Gold |
|
- | |||||
| 19 | 68780W | End Panel, Middle, L.h. |
|
- | |||||
| 20 | 69199 | Glass Tray, Upper Oven |
|
- | |||||
| 21 | Y68787 | Support, Aux, Fan Ass`y. |
|
- | |||||
| 22 | 69420 | Front Trim, R.h. |
|
- | |||||
| 23 | 69419 | Front Trim, L.h. |
|
- | |||||
| 24 | Y67300 | Side Shield |
|
- | |||||
| 25 | 68749N | Jacket End - R.h. |
|
- | |||||
| 25 | 68749D | Jacket End - R.h. |
|
- | |||||
| 25 | 68749C | Jacket End - R.h. |
|
- | |||||
| 25 | 68749V | Jacket End - R.h. |
|
- | |||||
| 25 | 68749W | Jacket End - R.h. |
|
- | |||||
| 26 | 68750N | Jacket End - L.h. |
|
- | |||||
| 26 | 68750W | Jacket End - L.h. |
|
- | |||||
| 26 | 68750C | Jacket End - L.h. |
|
- | |||||
| 26 | 68750D | Jacket End - L.h. |
|
- | |||||
| 26 | 68750V | Jacket End - L.h. |
|
- | |||||
| 27 | 69410 | Mounting Bracket |
|
- | |||||
| 28 | 69203 | Tape, Air Seal - Top |
|
- | |||||
| 29 | 69202 | Tape, Air Seal - Back |
|
- | |||||
| 30 | 0068991 | Plate, Air Seal |
|
- | |||||
| 31 | Y68768 | Backplate |
|
- | |||||
| 32 | Y69441 | Jacket Top |
|
- | |||||
| 33 | 73060 | Oven Vent |
|
Immediately | $ 24.25 | ||||
| 34 | 69424 | Insert, Top Trim |
|
- | |||||
| 35 | 69425 | Top Trim, Air Intake |
|
- | |||||
| 36 | Y69446 | Oven Top |
|
- | |||||
| 37 | 68788 | Support, Aux. Motor |
|
- | |||||
| 38 | Y67296 | Spacer - Rear Side Wall - L.h. |
|
- | |||||
| 39 | Y67295 | Spacer - Rear Side Wall - R.h. |
|
- | |||||
| NI | 69185 | Label, Warning |
|
$ 48.20 |
