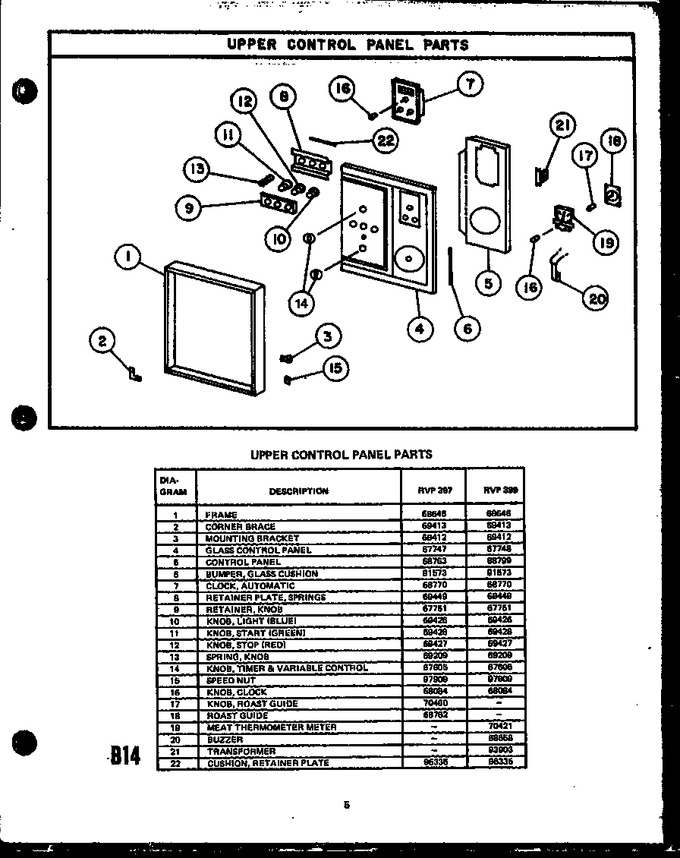

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 68646 | Frame |
|
- | |||||
| 2 | 69413 | Corner Brace |
|
$ 11.34 | |||||
| 3 | 69412 | Mounting Bracket |
|
- | |||||
| 4 | 67747 | Glass Control Panel |
|
- | |||||
| 5 | Y68763 | Control Panel |
|
- | |||||
| 6 | 0091573 | Sub 68115 Bumper |
|
- | |||||
| 7 | Y68770 | Clock, Automatic |
|
- | |||||
| 8 | 69449 | Retainer Plate, Springs |
|
- | |||||
| 9 | 67751 | Retainer, Knob |
|
- | |||||
| 10 | 69426 | Knob, Light |
|
- | |||||
| 11 | 69428 | Knob, Start |
|
$ 149.99 | |||||
| 12 | 69427 | Knob, Stop |
|
- | |||||
| 13 | Y69209 | Spring, Knob |
|
- | |||||
| 14 | 67605 | Knob, Timer & Variable Control |
|
- | |||||
| 15 | 0097909 | Spee Nut Mount Brack To Frame |
|
- | |||||
| 16 | 68084 | Knob |
|
- | |||||
| 17 | 70460 | Knob, Roast Guide |
|
- | |||||
| 18 | Y68762 | Roast Guide |
|
- |
