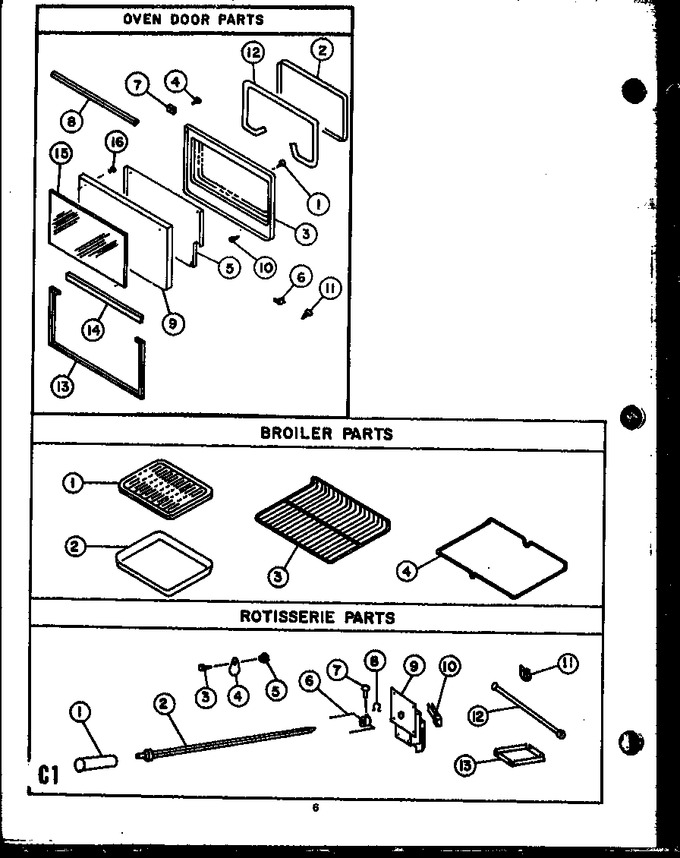

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0095943 | Use 304451e |
|
- | |||||
| 1 | 0092357 | Handle Spit Rod |
|
- | |||||
| 1 | 69372 | Screw, Door Assembly |
|
Immediately | $ 61.24 | ||||
| 2 | 79756 | Sub Backer, Oven Door |
|
- | |||||
| 2 | Y95944 | Pan, Broiler |
|
- | |||||
| 2 | 79806 | Spid Rod |
|
- | |||||
| 3 | Y70446 | Backer Assembly |
|
- | |||||
| 3 | 79431 | Screw, Shoulder |
|
- | |||||
| 3 | 79932 | Rack, Oven |
|
- | |||||
| 4 | 79425 | Rack, Rotisserie |
|
- | |||||
| 4 | 79758 | Cover Plate |
|
- | |||||
| 4 | Y67998 | Screw, Handle |
|
- | |||||
| 5 | M0282009 | Nut, 10-24 Hex Keps (Replaces: Y0097904) |
|
$ 12.06 | |||||
| 5 | 70555 | Retainer, Insulation |
|
- | |||||
| 6 | 79777 | Catch, Oven Door |
|
- | |||||
| 6 | 0094856 | Skewer With Thumbscrew |
|
- | |||||
| 7 | 78777 | Thumbscrew, Skewer |
|
- | |||||
| 7 | 79978 | Spacer |
|
- | |||||
| 8 | Y0092276 | Retaining Clip Spit Rod |
|
- | |||||
| 8 | 70181 | Handle, Oven Door (Replaces: 68150) |
|
Immediately | $ 89.99 | ||||
| 9 | 70422 | Oven Door Panel |
|
$ 12.42 | |||||
| 9 | 79799 | Rotisserie Motor |
|
- | |||||
| 10 | 79671 | Switch, Rotisserie Motor |
|
- | |||||
| 10 | DE81-10123A | Screw, Sub-backer To Backer (Replaces: 72898) |
|
$ 209.76 | |||||
| 11 | 79164 | Clamp, Shield |
|
- | |||||
| 11 | Y0092378 | Screw 10-24x1/4 Ph Trus |
|
- | |||||
| 12 | 0090542 | S/c Gas Range Door Gasket Kit |
|
- | |||||
| 12 | 79392 | Shield, Wire |
|
- | |||||
| 13 | 70629 | Trim, Frame |
|
- | |||||
| 13 | Y79748 | Cover, Bottom-rotisserie Motor |
|
- | |||||
| 14 | 70591 | Trim, Handle Spacer |
|
- | |||||
| 15 | 70618 | Panel, Black Glass |
|
Immediately | $ 225.26 | ||||
| 16 | Y70428 | Pop Rivet |
|
- |
