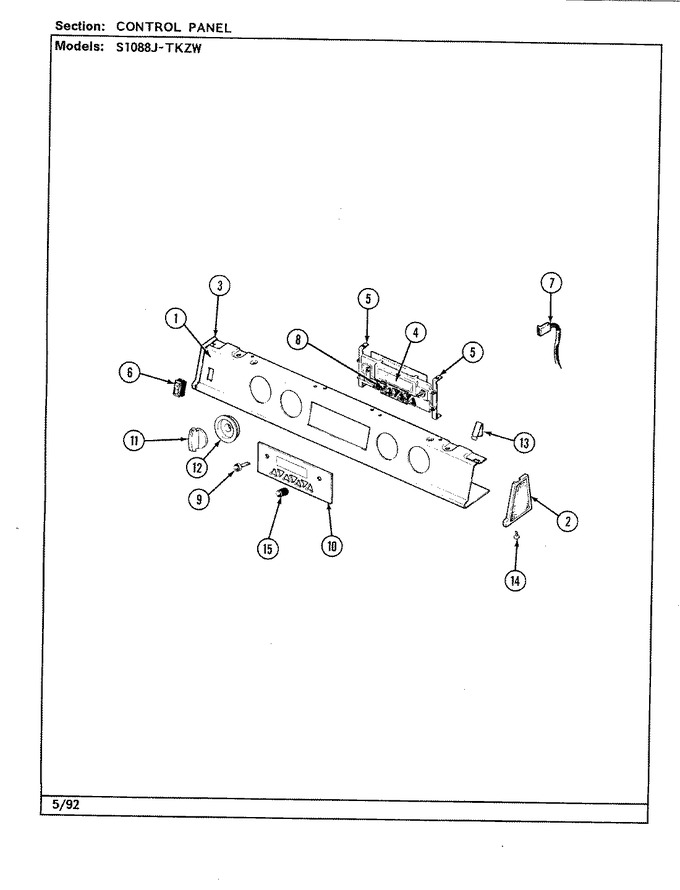

01 - Body
02 - Control Panel
03 - Control System (oven)
04 - Door/drawer
05 - Internal Controls
06 - Oven
07 - Top Assy./control System (surface)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7719P008-60 | Plate, Name | 01 |
|
- | ||||
| 1 | 7712P099-60 | Trim, Manifold Panel | 01 |
|
- | ||||
| 2 | 7713P005-60 | Trim, Manifold Panel End L | 01 |
|
- | ||||
| 2 | 7728P065-60 | Insert, Trim-manifold End-righ | 01 |
|
- | ||||
| 3 | 7728P066-60 | Insert, Trim (lt) | 01 |
|
- | ||||
| 3 | 7713P006-60 | Trim, End Cap (lt) | 01 |
|
- | ||||
| 4 | 7201P052-60 | Pad, Foam Gasket | 01 |
|
- | ||||
| 4 | 7601P158-60CP | Clock (Replaces: 7601P133-60) | 01 |
|
- | ||||
| 4 | 7601P158-60CP | Clock (Replaces: 7601P158-60) | 16 |
|
- | ||||
| 4 | 7601P179-60 | Clock, Electronic | 23 |
|
- | ||||
| 5 | 3801F199-45 | Bracket, Clock Mtg | 01 |
|
- | ||||
| 6 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 01 |
|
$ 91.35 | ||||
| 7 | 5170P095-60 | Harness, Relay | 23 |
|
- | ||||
| 7 | 5170P081-60 | Harness, Wire | 01 |
|
- | ||||
| 7 | 5170P089-60 | Harness, Oven Sensor | 01 |
|
- | ||||
| 7 | 7417P002-60 | Connector, Pin | 01 |
|
- | ||||
| 8 | 7711P428-60 | Button, Control Sel (blk) | 01 |
|
- | ||||
| 8 | 7711P445-60 | Button, Control Set | 23 |
|
- | ||||
| 9 | 7711P446-60 | Knob, Button Clock Set | 23 |
|
- | ||||
| 9 | 7711P433-60 | Button, Clock Set | 01 |
|
- | ||||
| 10 | 7720P129-60 | Bezel, Clock-black | 01 |
|
- | ||||
| 11 | 7733P032-60 | Knob, Valve (blk) | 01 |
|
- | ||||
| 12 | 7740P008-60 | Bezel, Valve Knob-black | 01 |
|
- | ||||
| 13 | WP25-7220 | Clip, Top Retainer (Replaces: 7112P042-60) | 01 |
|
$ 10.77 | ||||
| 14 | 7101P065-60 | Screw | 01 |
|
- | ||||
| 15 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 01 |
|
$ 12.13 |
