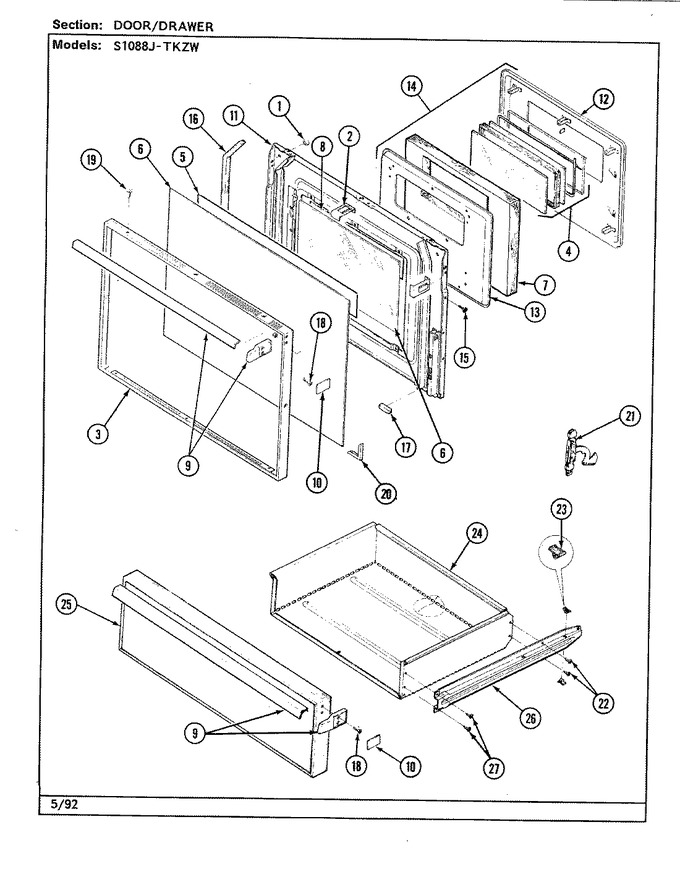

01 - Body
02 - Control Panel
03 - Control System (oven)
04 - Door/drawer
05 - Internal Controls
06 - Oven
07 - Top Assy./control System (surface)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8003P009-60 | Bumper, Door (square) | 01 |
|
- | ||||
| 2 | 7112P034-60 | Clip, Door | 01 |
|
- | ||||
| 3 | 7706P243-60 | Frame, Door | 01 |
|
- | ||||
| 4 | 5700A091-60 | Window Pak Assy. | 01 |
|
- | ||||
| 4 | 7902S303-60 | Window Pak | 24 |
|
- | ||||
| 5 | 8270P033-60 | Tape, Foil 3`` X 60 Yrds | 01 |
|
- | ||||
| 6 | 7902P276-60 | Glass, Door | 01 |
|
- | ||||
| 7 | 7002P117-60 | Insulation, Door Pad | 01 |
|
- | ||||
| 8 | 8270P071-60 | Tape, 2`` X 60 Yd Roll | 01 |
|
- | ||||
| 9 | 7701P031-60 | Handle, Door White | 01 |
|
- | ||||
| 10 | 7728P068-60 | Insert, Handle (chrome) | 01 |
|
- | ||||
| 11 | 2402W173-19 | Lining | 28 |
|
- | ||||
| 11 | 2402W173-15 | Lining | 01 |
|
- | ||||
| 11 | WP7103P114-60 | Nut, Snap (Replaces: 7103P114-60) | 01 |
|
$ 9.89 | ||||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 12 | 2410W041-19 | Pad, Door | 28 |
|
- | ||||
| 12 | 2410W041-15 | Pad, Door | 01 |
|
- | ||||
| 13 | 2410F016-51 | Pad, Inner | 01 |
|
- | ||||
| 14 | 2410A041-19 | Pad, Assy. | 28 |
|
- | ||||
| 14 | 2410A041-15 | Pad, Assy. | 01 |
|
- | ||||
| 15 | 7107P017-60 | Rivet | 01 |
|
- | ||||
| 16 | 7208P002-60 | Seal | 01 |
|
- | ||||
| 17 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 18 | 7101P123-60 | Screw | 01 |
|
- | ||||
| 19 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 01 |
|
Immediately | $ 6.85 | |||
| 20 | 8010P045-60 | Spacer, Glass Corner | 01 |
|
- | ||||
| 21 | 3420A033-34 | Stop, Oven Door | 01 |
|
- | ||||
| 22 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 23 | 8016P009-60 | Glide, Drawer | 01 |
|
- | ||||
| 23 | 8016P004-60 | Glide, Drawer | 01 |
|
- | ||||
| 24 | 3405F008-80 | Drawer, Service | 01 |
|
- | ||||
| 24 | W11164114 | Screw (Replaces: 7101P047-60) | 01 |
|
$ 3.76 | ||||
| 25 | 5425A021-71 | Drawer, Service | 01 |
|
- | ||||
| 26 | 3406F026-80 | Runner, Inner | 01 |
|
- | ||||
| 27 | 7101P287-60 | Screw, Metal Grounding | 01 |
|
$ 12.03 | ||||
| 28 | 3804F051-80 | Retainer, Glass | 01 |
|
- | ||||
| 29 | 7902P097-60 | Glass, Inner | 01 |
|
$ 63.87 |
