SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Control System (oven)


04 - Door/drawer


05 - Internal Controls


06 - Oven

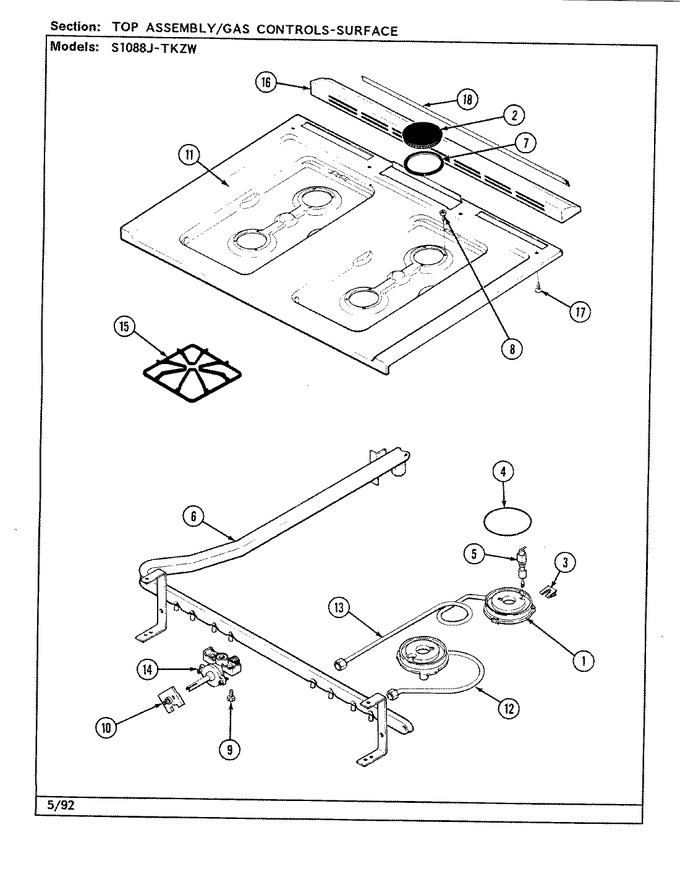

07 - Top Assy./control System (surface)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7505P187-60		Burner, Top	01	Appelez-nous	-
1	5415A016-60		Lp Conversion Kit	01	Appelez-nous	-
1	5415A015-60		+ Nat. Gas Conversion Kit	01	Appelez-nous	-
1	5110A825-60		Wire, Igniter Rear	01	Appelez-nous	-
1	5110A824-60		Wire, Igniter Front	01	Appelez-nous	-
1	7509P034-60		Orifice, Sealed Burner-nat	01	Appelez-nous	-
2	7504P005-60		Cap, Burner	01	Appelez-nous	-
3	7112P072-60		Clip	01	Appelez-nous	-
4	7201P037-60		Gasket, Burner	01	Appelez-nous	-
5	7432P053-60		Igniter, Burner	01	Appelez-nous	-
6	7513P117-60		Pipe, Manifold	22	Appelez-nous	-
6	7513P092-60		Pipe, Manifold	01	Appelez-nous	-
7	2014F001-90		Ring, Black	01	Appelez-nous	-
8	7101P256-60		Screw	01	Appelez-nous	-
9	7101P043-60		Screw, Control Valve	01	Appelez-nous	-
10	7403P259-60		Switch	30	Appelez-nous	-
10	7403P235-60		Switch, Lighter Burner	22	Appelez-nous	-
10	7403P286-60		Switch	33	Appelez-nous	-
10	WP7403P190-60		Switch, Burner   (Replaces: 7403P190-60)	01			$ 118.82
11	2001F103-30		Top, Main (stls)	01	Appelez-nous	-
12	7506P104-60		Tube, Front Burner	01	Appelez-nous	-
13	7506P105-60		Tube, Rear Burner	01	Appelez-nous	-
14	7502P131-60		Valve, Burner H-m-l	01	Appelez-nous	-
14	7214P003-60		Sleeve	01	Appelez-nous	-
14	7502P146-60		Valve, Top Burner	22	Appelez-nous	-
14	7502P230-60		Valve	31	Appelez-nous	-
15	1430283		Drip Bowl Kit (accessory)   (Replaces: 5401A433-60)	01			$ 95.86
15	2003W023-00		Grate (blk)	01	Appelez-nous	-
16	7724P026-60		Cover, Vent Trim	01	Appelez-nous	-
16	7724P055-60		Cover, Vent Trim	27	Appelez-nous	-
17	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	01			$ 6.98
18	7201P040-60		Gasket, Vent	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
