SELECT A DIAGRAM
01 - Body
02 - Control Panel

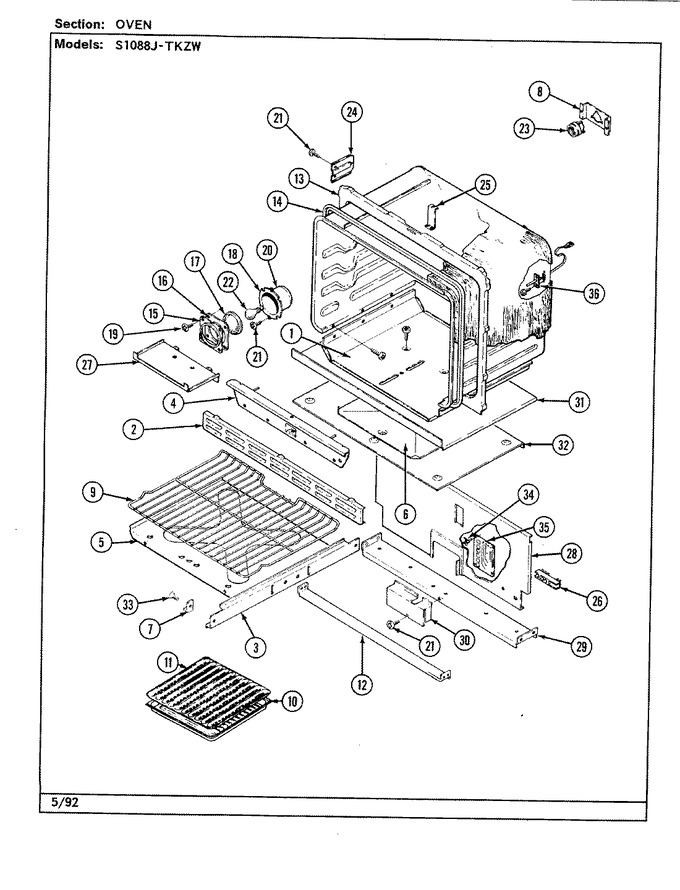

03 - Control System (oven)
04 - Door/drawer
05 - Internal Controls
06 - Oven
07 - Top Assy./control System (surface)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F060-45 | Housing, Bake Burner | 01 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 2 | 2614F008-80 | Panel, Lower Front | 01 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 3 | 3406F027-51 | Runner, Outer | 01 |
|
- | ||||
| 4 | 3601W125-15 | Baffle, Ovn Front | 01 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 01 |
|
Immediately | $ 6.85 | |||
| 5 | 2205F020-21 | Bottom, Oven | 28 |
|
- | ||||
| 5 | W10124403 | Bottom, Oven | 01 |
|
- | ||||
| 5 | 2205F020-15 | Bottom, Oven | 25 |
|
- | ||||
| 6 | 3601F116-45 | Baffle | 01 |
|
- | ||||
| 7 | 8016P005-60 | Glide, Front | 01 |
|
- | ||||
| 8 | 3801F024-51 | Bracket | 01 |
|
- | ||||
| 9 | 7801P031-60 | Rack, Oven | 01 |
|
- | ||||
| 10 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 01 |
|
Immediately | $ 52.04 | |||
| 11 | 3413F002-23 | Insert, Broil Pan | 01 |
|
- | ||||
| 12 | 3802F076-51 | Brace, Inner Side | 01 |
|
- | ||||
| 13 | W10124350 | Not Required Part Or See Note Front,oven (not Replaceable) | 01 |
|
- | ||||
| 13 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 01 |
|
$ 6.47 | ||||
| 14 | 7201P036-60 | Gasket, Oven | 01 |
|
$ 118.90 | ||||
| 15 | 3804F012-45 | Retainer, Lamp Guard | 01 |
|
- | ||||
| 16 | 7201P015-60 | Gasket, Lamp Retainer | 01 |
|
- | ||||
| 17 | 7902P057-60 | Glass, Lamp Guard | 01 |
|
- | ||||
| 18 | 7201P014-60 | Gasket, Housing | 01 |
|
- | ||||
| 19 | WP7101P126-60 | Screw (Replaces: 7101P064-60) | 01 |
|
Immediately | $ 6.85 | |||
| 20 | 4001F020-23 | Housing, Lamp | 01 |
|
- | ||||
| 21 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 22 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 23 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 24 | 3807F205-45 | Support, Oven Rear | 01 |
|
- | ||||
| 25 | 3801F093-45 | Bracket, Burner Box | 01 |
|
- | ||||
| 26 | 7401P015-60 | Block, Terminal | 01 |
|
- | ||||
| 27 | 3601W130-45 | Baffle, Bake & Broil | 01 |
|
- | ||||
| 27 | WP7101P126-60 | Screw (Replaces: 7101P273-60) | 01 |
|
Immediately | $ 6.85 | |||
| 28 | 4002F145-45 | Back, Broil Section | 01 |
|
- | ||||
| 29 | 3807F329-45 | Support, Valve | 01 |
|
- | ||||
| 30 | 4005F258-51 | Cover, Oven Valve | 01 |
|
- | ||||
| 31 | 3807F388-45 | Support, Oven Bottom | 01 |
|
- | ||||
| 32 | 3604F162-45 | Shield, Service Drawer | 01 |
|
- | ||||
| 33 | 7101P013-60 | Screw, Special | 01 |
|
- | ||||
| 34 | 8004P020-60 | Support, Relay Board | 01 |
|
- | ||||
| 35 | 7428P010-60 | Relay Board | 23 |
|
- | ||||
| 35 | 7428P008-60 | Relay, Board Assy. | 01 |
|
- | ||||
| 36 | 12001655 | Probe, Oven Sensor (Replaces: 7430P009-60) | 37 |
|
Immediately | $ 41.01 |
