SELECT A DIAGRAM
01 - Body
02 - Control Panel

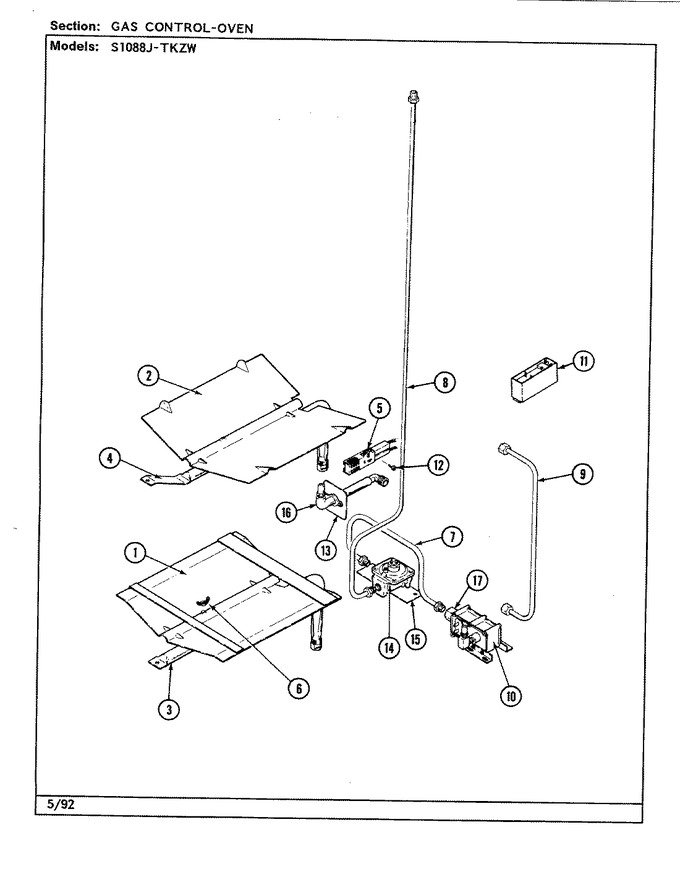

03 - Control System (oven)
04 - Door/drawer
05 - Internal Controls
06 - Oven
07 - Top Assy./control System (surface)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W184-15 | Baffle | 01 |
|
- | ||||
| 2 | 3601F181-45 | Baffle, Oven Burner | 01 |
|
- | ||||
| 3 | 3403A015-45 | Burner Oven | 22 |
|
- | ||||
| 3 | 7505P101-60 | Burner | 01 |
|
- | ||||
| 3 | 3403D027-45 | Burner, Oven | 28 |
|
- | ||||
| 4 | 7505P100-60 | Burner, Bake & Broil | 01 |
|
- | ||||
| 4 | 3403D028-45 | Burner, Broil | 28 |
|
- | ||||
| 4 | 3403A016-45 | Burner Assy Broil | 22 |
|
- | ||||
| 5 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 01 |
|
Immediately | $ 60.44 | |||
| 6 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 7 | 7506P075-60 | Tube, Regulator----na | 01 |
|
- | ||||
| 8 | 7506P101-60 | Tube, Manifold Feed----na | 01 |
|
- | ||||
| 9 | 3414F057-44 | Tubing, 3/8 X 20-3/4 | 01 |
|
- | ||||
| 10 | 7501P095-60 | Valve, Broil & Bake - Nat | 22 |
|
- | ||||
| 10 | 7501P034-60 | Valve, Broil & Bake | 01 |
|
- | ||||
| 11 | 3801F226-45 | Bracket, Spark Module | 17 |
|
- | ||||
| 11 | 7431P016-60 | Module, Spark | 01 |
|
- | ||||
| 11 | 12001596 | Module, Spark (Replaces: 7431P017-60) | 17 |
|
Immediately | $ 85.93 | |||
| 11 | 3801F205-45 | Bracket, Module Support | 01 |
|
- | ||||
| 12 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 01 |
|
$ 4.29 | ||||
| 13 | 3605F019-45 | Plate, Fitting | 01 |
|
- | ||||
| 14 | 7510P048-60 | Regulator, Pressure | 36 |
|
- | ||||
| 14 | 7510P040-60 | Regulator | 26 |
|
- | ||||
| 14 | 7510P028-60 | Regulator, Pressure | 01 |
|
- | ||||
| 15 | 3801F191-45 | Bracket, Regulator Mtg | 01 |
|
- | ||||
| 16 | 7507P028-60 | Fitting, Broil Burner | 01 |
|
- | ||||
| 17 | 1555251 | Nut, Loxit (3/8``) | 01 |
|
- |
