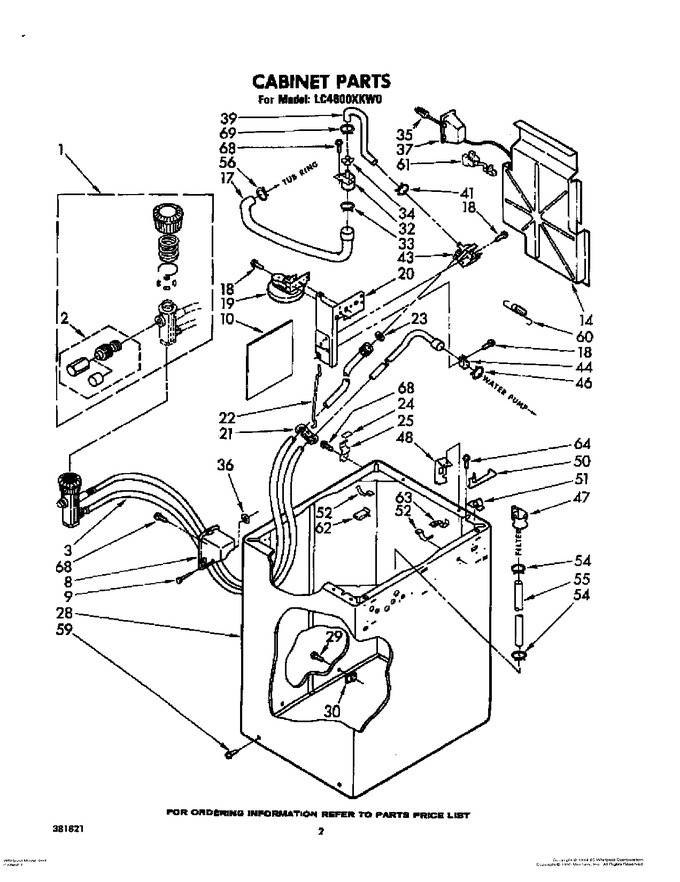

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP285170 | Collar Kit, Faucet Coupler (Replaces: 285170) |
|
Immediately | $ 64.29 | ||||
| 2 | 285171 | Valve, Pressure Relief |
|
- | |||||
| 3 | 359608 | Hose & Coupler Assembly |
|
- | |||||
| 8 | 356263 | Housing, Hose |
|
- | |||||
| 9 | 356262 | Pin, Hose Housing |
|
- | |||||
| 10 | 353885 | Barrier, Splash |
|
- | |||||
| 14 | 356211 | Box, Power Cord |
|
- | |||||
| 17 | 356314 | Hose, Water Inlet |
|
- | |||||
| 18 | 98520 | Screw, 8 X 5/16 |
|
- | |||||
| 19 | 368915 | Switch,\ Water\ Level |
|
- | |||||
| 20 | 357174 | Bracket, Control |
|
- | |||||
| 21 | 356390 | Guide, Hose |
|
- | |||||
| 22 | 356389 | Rod, Hose Guide |
|
- | |||||
| 23 | WP16123 | Washer (Replaces: 16123) |
|
$ 6.93 | |||||
| 24 | 18849 | Pad, Top Hinge |
|
$ 18.13 | |||||
| 25 | 356606 | Hinge, Cabinet |
|
- | |||||
| 28 | 379672 | Cabinet (white) |
|
- | |||||
| 28 | 379673 | Cabinet (almond) |
|
- | |||||
| 28 | 379676 | Cabinet (golden Harvest) |
|
- | |||||
| 29 | 9426223 | Screw, 10-16 X 1 |
|
- | |||||
| 30 | 357043 | Spacer, Cabinet |
|
- | |||||
| 32 | WP356363 | Siphon Break (Replaces: 356363) |
|
Immediately | $ 7.19 | ||||
| 33 | WP616099 | Clamp, Hose (Replaces: 272861) |
|
Immediately | $ 7.03 | ||||
| 34 | WP356471 | Cap, Siphon Break (Replaces: 356471) |
|
$ 6.98 | |||||
| 35 | 357500 | Power, Cord |
|
- | |||||
| 36 | 98149 | Clip, Stud |
|
- | |||||
| 37 | 356231 | Housing, Power Cord |
|
- | |||||
| 39 | 356313 | Hose, Water Inlet |
|
- | |||||
| 41 | WP596669 | Clamp (Replaces: 356436) |
|
Immediately | $ 7.56 | ||||
| 43 | 367184 | Valve, Water Inlet |
|
- | |||||
| 44 | 357171 | Clamp, Hose |
|
- | |||||
| 46 | WP285655 | Clamp, Hose (Replaces: 353097) |
|
Immediately | $ 7.55 | ||||
| 47 | 356982 | Bracket, Hose Retaining |
|
- | |||||
| 48 | 357504 | Bracket, Harness |
|
- | |||||
| 50 | 356917 | Pad, Top (r.h.) |
|
- | |||||
| 50 | 356916 | Pad, Top (l.h.) |
|
- | |||||
| 51 | 356422 | Lock, Front Top (2) |
|
- | |||||
| 52 | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| 54 | WP596669 | Clamp, Hose (Replaces: 353367) |
|
Immediately | $ 7.56 | ||||
| 55 | 356397 | Hose, Pump To Filter |
|
- | |||||
| 56 | 353094 | Clamp |
|
- | |||||
| 59 | WP273556 | Screw, 10-12 X 5/8 (Replaces: 273556) |
|
Immediately | $ 7.04 | ||||
| 60 | 356887 | Spring, Hose Retaining |
|
- | |||||
| 61 | 357499 | Relief, Strain |
|
- | |||||
| 62 | 356649 | Clip |
|
- | |||||
| 63 | 356387 | Clip, Harness |
|
- | |||||
| 64 | WP488234 | Screw, 8-32 X 1/4 (Replaces: 9412221) |
|
$ 6.07 | |||||
| 68 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 69 | WP596669 | Clamp, Hose (Replaces: 371501) |
|
Immediately | $ 7.56 |
