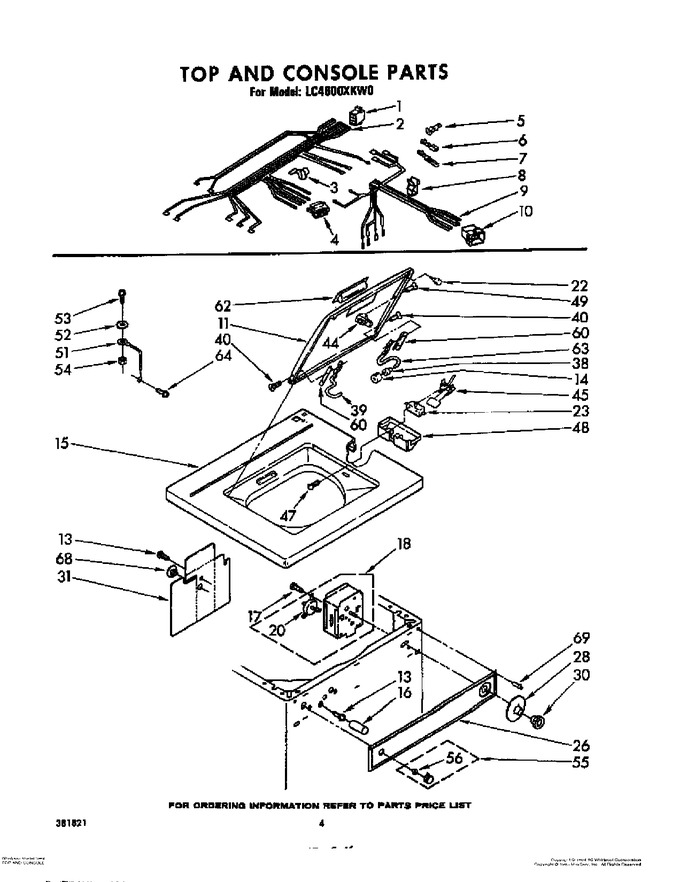

04 - Top And Console


05 - Drive


06 - Water Pump


07 - Tub And Basket


08 - Gearcase


09 - Basket Drive And Brake


10 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	94611		Plug, Terminal		Appelez-nous	-
2	358551		Harness, Upper		Appelez-nous	-
3	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
4	W10876590		Disconnect, Block, Timer (black)   (Replaces: 352089)				$ 11.48
5	352088		Terminal (use W/352089)				$ 5.83
6	WP94614		Terminal (use W/94611)   (Replaces: 94614)				$ 6.90
7	94613		Terminal (use W/94612)		Appelez-nous	-
8	356327		Clip, Harness		Appelez-nous	-
9	358099		Harness, Lower		Appelez-nous	-
10	94612		Cap, Terminal		Appelez-nous	-
11	373498		Lid (golden Harvest)		Appelez-nous	-
11	373495		Lid (almond)		Appelez-nous	-
11	373491		Lid (white)		Appelez-nous	-
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
14	19119		Bumper, Lid Hinge				$ 5.75
15	378968		Top (golden Harvest)		Appelez-nous	-
15	378965		Top (almond)		Appelez-nous	-
15	378964		Top (white)		Appelez-nous	-
16	W10491983		Cap, Screw   (Replaces: 359702)		Appelez-nous	-
17	WP356418		Screw   (Replaces: 356690)				$ 7.13
18	359137		Timer, Disconnect		Appelez-nous	-
20	365941		Motor, Timer		Appelez-nous	-
22	WP9724509		Bumper (2)   (Replaces: 93770)			Immediately	$ 7.14
23	W10820036		Switch (alternate)   (Replaces: 364091)			Immediately	$ 27.45
23	00-6163		Switch (alternate)   (Replaces: 364090)				$ 22.92
23	W10820036		Switch (alternate)   (Replaces: 367034)			Immediately	$ 27.45
26	375540		Panel, Control		Appelez-nous	-
28	359917		Dial, Timer		Appelez-nous	-
30	356500		Knob, Timer		Appelez-nous	-
31	357901		Shield, Timer		Appelez-nous	-
38	WP21258		Bearing, Hinge   (Replaces: 21258)			Immediately	$ 6.87
39	WP54584		Hinge, Lid (l.h.)   (Replaces: 54584)				$ 30.09
40	WPW10119828		Screw   (Replaces: 18724)			Immediately	$ 6.47
44	357633		Strike, Lid Switch		Appelez-nous	-
45	357347		Switch Actuator Assembly		Appelez-nous	-
47	354764		Screw & Washer		Appelez-nous	-
48	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
49	354975		Screw & Washer		Appelez-nous	-
51	368715		Wire, Ground		Appelez-nous	-
52	90918		Washer		Appelez-nous	-
53	WP308544		Screw   (Replaces: 274707)			Immediately	$ 6.98
54	W10080180		Nut   (Replaces: 271166)				$ 12.13
55	367675		Knob Assembly, Water Level		Appelez-nous	-
56	599530307		Clip   (Replaces: 90015)		Appelez-nous	-
60	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.02
62	378984		Handle, Lid (almond)		Appelez-nous	-
62	WP686711		Handle, Lid (white)   (Replaces: 94941)			Immediately	$ 7.16
62	378987		Handle, Lid (golden Harvest)		Appelez-nous	-
63	WP91770		Hinge, R.h.   (Replaces: 91770)				$ 24.71
64	941221		Screw, 10 X 3/8		Appelez-nous	-
68	356288		Clip, Push-on		Appelez-nous	-
69	356388		Rivet, Plastic		Appelez-nous	-
