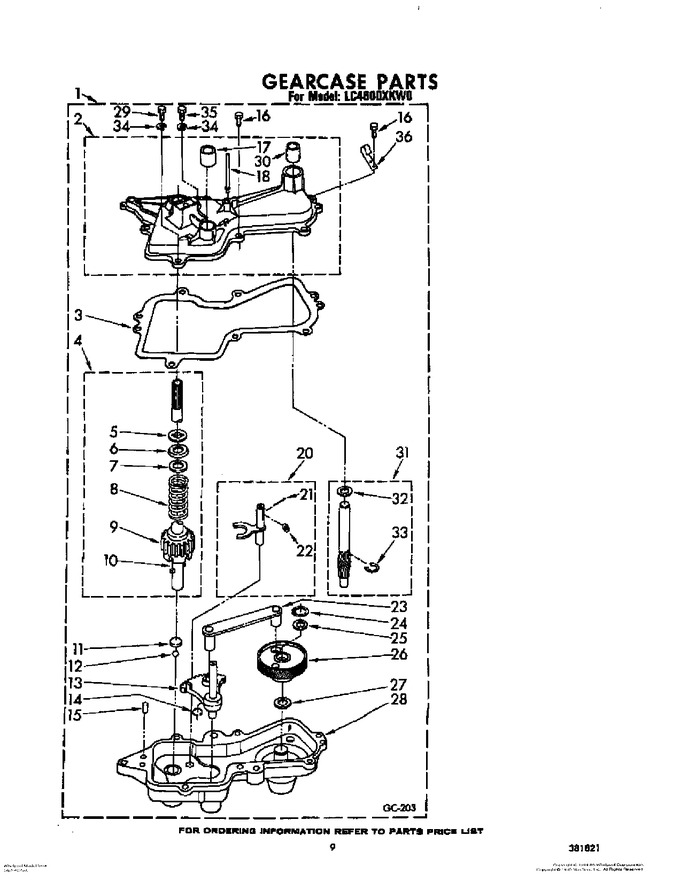

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	359279		Gearcase (complete)		Appelez-nous	-
2	367552		Cover, Gearcase		Appelez-nous	-
3	95089		Gasket, Gearcase		Appelez-nous	-
4	362642		Shaft, Agitator		Appelez-nous	-
6	92814		Seal, Agitator Shaft				$ 1.67
7	94276		Shield, Agitator Spring		Appelez-nous	-
8	92815		Spring, Agitator Shaft		Appelez-nous	-
9	355469		Gear, Agitator Shaft		Appelez-nous	-
10	362098		Shaft, Agitator		Appelez-nous	-
11	285205		Bearing, Agitator Thrust   (Replaces: 16018)				$ 6.77
12	285205		Ball, Agitator Shaft   (Replaces: 85529)				$ 6.77
13	75073		Gear, Sector		Appelez-nous	-
14	52083		Ring, Retainer		Appelez-nous	-
15	5018		Pin, Dowel		Appelez-nous	-
16	356599		Bolt, 5/16-24 X 3/4 (5)		Appelez-nous	-
17	96853		Bearing, Gear Fork		Appelez-nous	-
18	356445		Support, Brake Shoe Yoke		Appelez-nous	-
20	80398		Fork, Agitator Gear		Appelez-nous	-
21	90532		Pin, Gear Fork Shaft		Appelez-nous	-
22	92119		Roller, Gear Fork Shaft		Appelez-nous	-
23	76577		Rod, Connecting		Appelez-nous	-
24	95082		Ring, Retaining		Appelez-nous	-
25	95083		Washer, Retainer		Appelez-nous	-
26	359273		Gear, Main Drive		Appelez-nous	-
28	362906		Gearcase		Appelez-nous	-
29	356512		Bolt, 5/16-24 X 1-1/8 (1)		Appelez-nous	-
30	354513		Bearing, Drive Pinion		Appelez-nous	-
31	84467N		Pinion, Drive   (Replaces: 84467)		Appelez-nous	-
32	16024		Washer, Drive Pinion				$ 21.31
33	90094		Ring, Retainer		Appelez-nous	-
34	138485		Lockwasher (2)		Appelez-nous	-
35	355613		Screw, 5/16-24 X 1-3/4 (1)		Appelez-nous	-
36	350572		Oil, Gearcase (15 Oz.)			Immediately	$ 82.45
36	357172		Bracket, Hose		Appelez-nous	-
