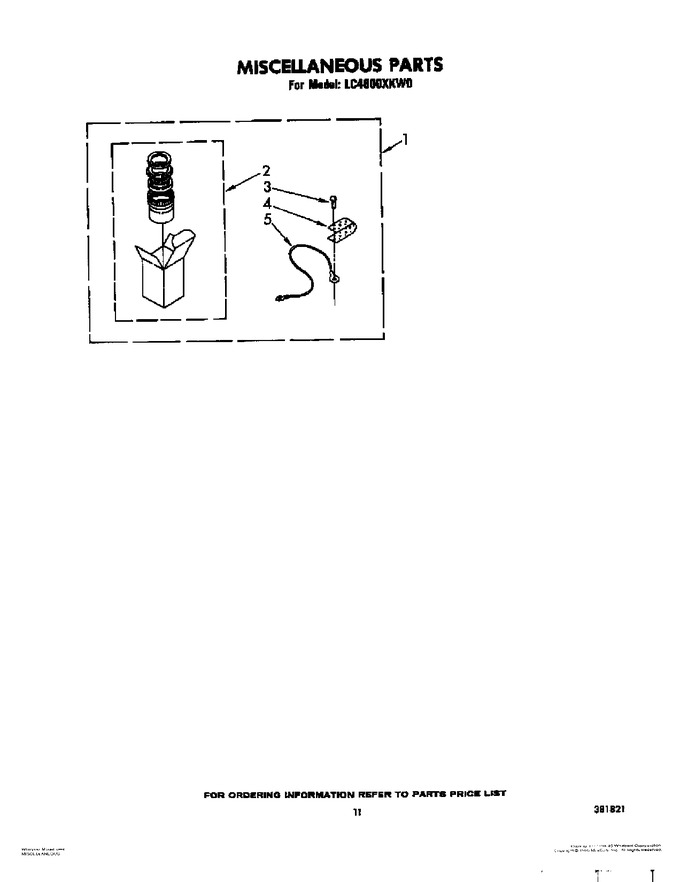

10 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	374886		Miscellaneous Parts Bag		Appelez-nous	-
2	30168LF		Faucet Adapter Kit   (Replaces: 713750)			Immediately	$ 10.94
3	132848		Screw, Ground (10-24 X 1)		Appelez-nous	-
4	22965		Strap, Ground		Appelez-nous	-
5	364089		Wire, Ground		Appelez-nous	-
5	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
5	350941		Leveler (thinner)		Appelez-nous	-
5	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
5	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
5	261890		Golden Harvest		Appelez-nous	-
5	799351		Thinner (1 Gal.)		Appelez-nous	-
5	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
5	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
5	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
5	358770		Guide, Laundry		Appelez-nous	-
5	378951		Sheet, Installation Instructions		Appelez-nous	-
5	382601		Instructions, Operating		Appelez-nous	-
5	382257		Label, Energy Guide		Appelez-nous	-
5	381821		List, Repair Parts		Appelez-nous	-
