SELECT A DIAGRAM

02 - Cabinet

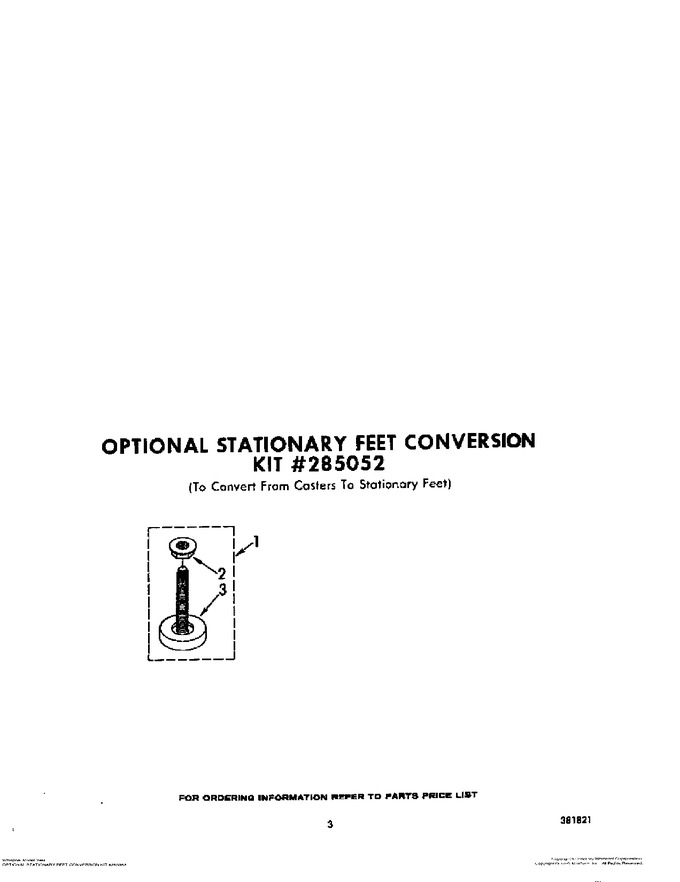

03 - Optional Stationary Feet Conversion


04 - Top And Console


05 - Drive


06 - Water Pump


07 - Tub And Basket


08 - Gearcase


09 - Basket Drive And Brake


10 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	285052		Feet Kit (kit Contains 4 Feet & 4 Locknuts)		Appelez-nous	-
2	359304		Locknut (4)		Appelez-nous	-
3	WPW10001130		Foot, Leveling (4)   (Replaces: 775526)			Immediately	$ 7.02

    View Diagram in Separate Window       Print Part List
