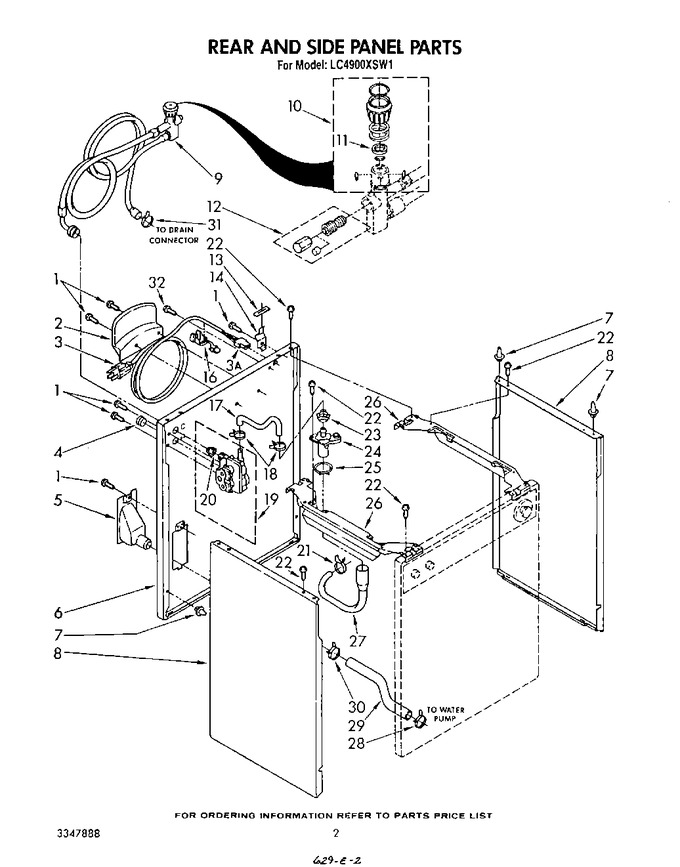

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3390631		Screw, Mounting (10-16 X 3/8 (7)   (Replaces: 62863)				$ 7.04
2	356499		Bracket, Hose Storage				$ 32.28
3	691707		Plug, Wire		Appelez-nous	-
3	63847		Cord, Power (includes Illus. 3a)		Appelez-nous	-
4	70136		Cap, Mixing Valve Port   (Replaces: 356054)			Immediately	$ 3.17
5	WPW10358149		Connector, Drain   (Replaces: 63206)			Immediately	$ 43.34
6	63616		Panel, Rear (almond Model)				$ 0.03
6	63615		Panel, Rear (white Model)				$ 0.03
6	63619		Panel, Rear (golden Harvest)		Appelez-nous	-
6	63618		Panel, Rear (platinum)		Appelez-nous	-
6	63617		Panel, Rear (toast)				$ 0.03
7	98669		Locator, Top (6)				$ 12.03
8	63605		Panel, Side (2) (toast)				$ 79.99
8	63604		Panel, Side (2) (almond)		Appelez-nous	-
8	63603		Panel, Side (2) (white)		Appelez-nous	-
8	63606		Panel, Side (2) (platinum)		Appelez-nous	-
8	64634		Panel, Side (2) (golden Harvest)   (Replaces: 63607)				$ 8.19
9	WPW10187809		Coupler, Hose (serviced Complete)   (Replaces: 64077)				$ 253.77
10	WP285170		Collar Kit, Faucet Coupler   (Replaces: 285170)			Immediately	$ 64.29
11	WP910218		Seal   (Replaces: 711696)			Immediately	$ 9.05
12	285171		Valve, Pressure Relief		Appelez-nous	-
13	18849		Pad, Top Hinge (2)				$ 18.13
14	356606		Hinge, Rear Panel (2)		Appelez-nous	-
16	W11733005		Strain Relief, Power Cord   (Replaces: 63848)				$ 11.64
17	386932		Hose, Water Inlet		Appelez-nous	-
18	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 7.56
19	285805		Valve, Water Mixing   (Replaces: 358992)			Immediately	$ 49.57
20	WP96160		Screen, Filter   (Replaces: 96160)				$ 10.54
21	272855		Clamp, Hose		Appelez-nous	-
22	60001022		Screw, Mounting (15) (10-16 X 1/2)   (Replaces: 64247)				$ 56.93
23	WP356471		Cap, Siphon Break   (Replaces: 356471)				$ 6.98
24	WP356363		Siphon Break   (Replaces: 356363)			Immediately	$ 7.19
25	WP616099		Clamp, Hose   (Replaces: 272861)			Immediately	$ 7.03
26	63634		Brace, Tie (2)		Appelez-nous	-
27	386933		Hose, Siphon Break		Appelez-nous	-
28	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
29	386930		Hose, Pump Drain		Appelez-nous	-
30	WP356138		Clamp, Hose   (Replaces: 272856)			Immediately	$ 7.67
31	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.55
32	WP681414		Screw, Ground (10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
	LIT3348302		Instructions, Installation		Appelez-nous	-
	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)				$ 93.95
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Toast		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350941		Leveler (thinner)		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	LIT3347888		List, Repair Parts		Appelez-nous	-
	LIT387747		Label, Energy Guide		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	LIT387422		Guide, Use And Care		Appelez-nous	-
	LIT385238		Guide, Laundry		Appelez-nous	-
	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 82.45
	261891		Golden Harvest (uncut)		Appelez-nous	-
	285368		Platinum (uncut)		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	261890		Golden Harvest		Appelez-nous	-
