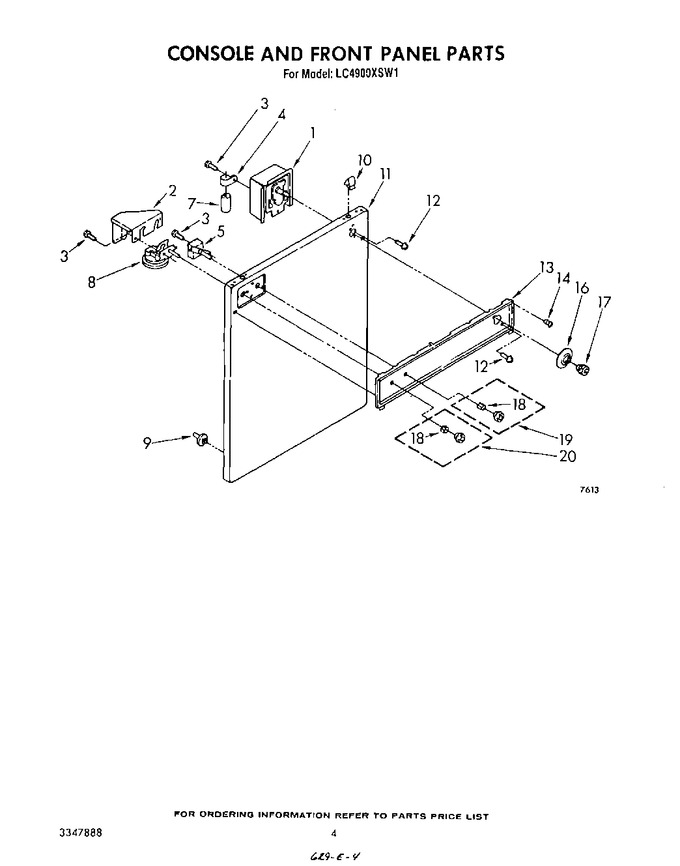

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3347793		Timer, 60 Hz. (serviced As A Complete Assembly. Timer Motor Is Non Serviceable.)				$ 377.46
2	388189		Shield, Control		Appelez-nous	-
3	3347107		Screw, 8-18 X 5/16 (4)		Appelez-nous	-
4	357030		Clamp, Capacitor				$ 18.98
5	387909		Switch, Water Temperature		Appelez-nous	-
7	WP8572717		Capacitor, Motor Start (mfd 189, 110 Volts)   (Replaces: 357021)			Immediately	$ 72.13
8	64055		Switch, Water Level		Appelez-nous	-
9	98669		Locator, Top (2)				$ 12.03
10	356422		Lock, Front Top (2)		Appelez-nous	-
11	63612		Panel, Front (platinum)				$ 15.27
11	63611		Panel, Front (toast)				$ 27.50
11	63610		Panel, Front (almond Model)		Appelez-nous	-
11	63609		Panel, Front (white Model)		Appelez-nous	-
11	63613		Panel, Front (golden Harvest)				$ 15.31
12	WP356418		Screw, Timer Mounting   (Replaces: 96435)				$ 7.13
13	387673		Panel, Console		Appelez-nous	-
14	356388		Rivet, Console Mounting (2)		Appelez-nous	-
16	696425		Dial, Timer		Appelez-nous	-
17	3347726		Knob, Timer		Appelez-nous	-
18	WP688805		Clip, Control Knob   (Replaces: 688805)			Immediately	$ 7.03
19	696343		Knob & Skirt (water Temperature)		Appelez-nous	-
20	696342		Knob & Skirt (water Level)		Appelez-nous	-
