Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10876590 Block, Timer Disconnect (connects To Timer)   (Replaces: 352089) Special Order $ 11.48

1 387711 Harness, Cabinet Wiring (includes Illus. 1a, 1b, 1c & 1d) Appelez-nous -
1 353424 Plug, Terminal (3 Way) (connects To Power Cord) Special Order $ 18.95

1 62888 Plug, Terminal (3 Way) (connects To Lid Switch Harness) Special Order $ 37.28

1 WP62505 Block, Disconnect (connects To Motor)   (Replaces: 62505) Special Order $ 21.35

2 64227 Clip, Harness (4) Appelez-nous -
3 387668 Clip, Harness (2) Appelez-nous -
4 3347107 Screw, 8-18 X 5/16 Appelez-nous -
5 WP90016 Clip, Harness (2)   (Replaces: 90016) Special Order $ 10.19

6 WP681414 Screw, 10-32 X 1/2 (grounding)   (Replaces: 690989) In-Stock Immediately $ 7.07

7 8528351 Clip, Harness (2)   (Replaces: 693193) Appelez-nous -
8 64162 Clip, Harness Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

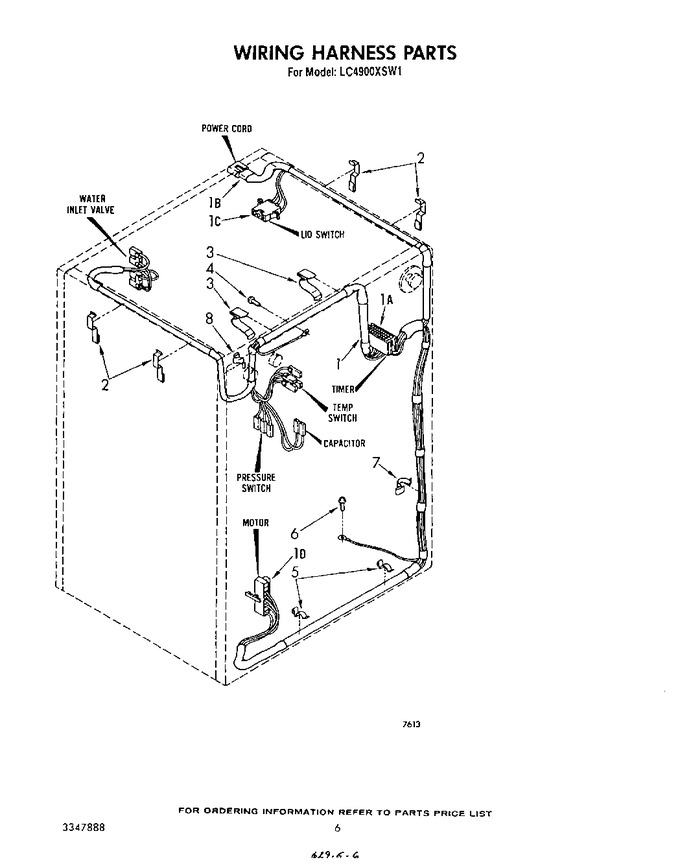

Diagram for LC4900XSW1
