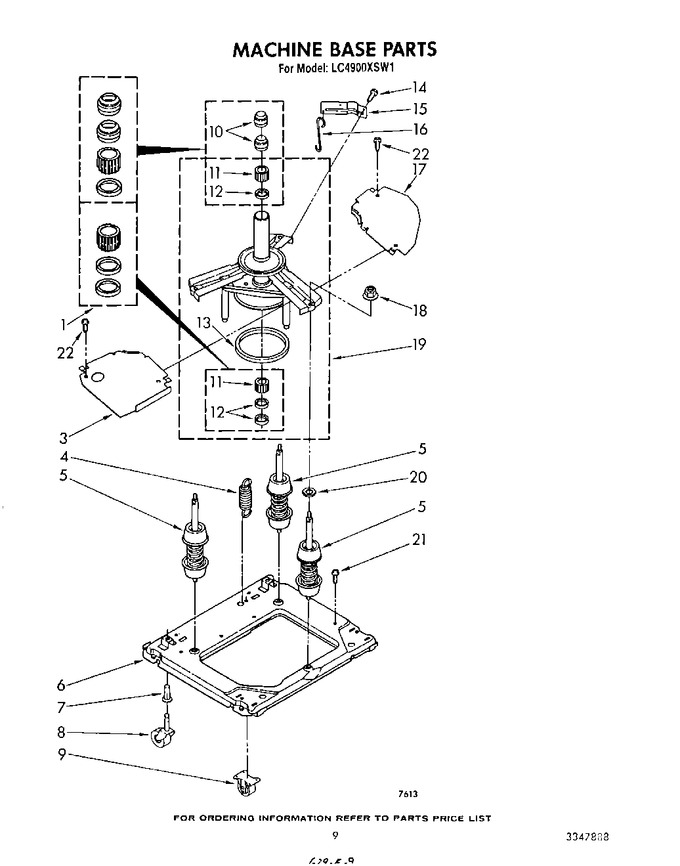

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	285203		Centerpost Bearing Kit (incls. Illus. 10, 11, & 12)			Immediately	$ 94.46
3	WP64137		Shield, Tub   (Replaces: 64137)				$ 28.26
4	WPW10250667		Spring, Counterweight   (Replaces: 62738)			Immediately	$ 8.63
5	389358		Suspension Assembly (3)		Appelez-nous	-
6	WP8577373		Base   (Replaces: 63755)				$ 294.83
7	300450		Socket, Caster (2)		Appelez-nous	-
8	357422		Caster And Socket, Rear (2) (includes Illus. 7)		Appelez-nous	-
9	64057		Wheel, Front (2)		Appelez-nous	-
10	WP8577376		Seal, Centerpost (2)   (Replaces: 356934)			Immediately	$ 6.47
11	WP8546455		Bearing, Centerpost (2)   (Replaces: 3347047)			Immediately	$ 25.16
12	W11095997		Seal, Centerpost (3)   (Replaces: 357409)			Immediately	$ 20.07
13	WP63134		Ring, Sound Deadening   (Replaces: 63134)				$ 7.35
14	WP273556		Screw, 10-16 X 5/8 (2)   (Replaces: 98610)			Immediately	$ 7.04
15	63636		Bracket, Counterweight Spring				$ 40.28
16	WPW10250667		Retainer, Spring   (Replaces: 63207)			Immediately	$ 8.63
17	63637		Shield, Tub		Appelez-nous	-
18	388398		Nut, 1/2 - 20 (3)		Appelez-nous	-
19	W10863713		Tub Support And Drum   (Replaces: 63740)				$ 360.23
20	64259		Washer, Hex (2)		Appelez-nous	-
21	WP681414		Screw, 10-32 X 1/2 (grounding)   (Replaces: 690989)			Immediately	$ 7.07
22	WP90767		Screw, 8a X 3/8 Hex Washer Head (4)   (Replaces: 90767)			Immediately	$ 7.04

    View Diagram in Separate Window       Print Part List
