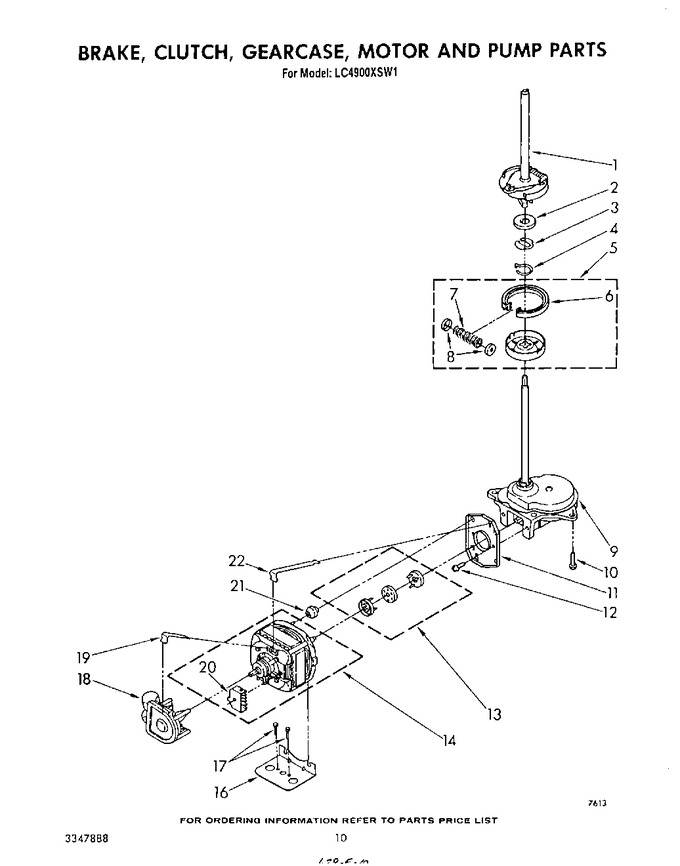

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10820043		Brake And Drive Tube (complete) (refer To Page 11 For Further Breakdown)   (Replaces: 387948)			Immediately	$ 195.58
2	WP63292		Washer, Spin Tube Thrust   (Replaces: 63292)			Immediately	$ 6.94
3	WPW10080230		Ring, Spin Tube Support   (Replaces: 62697)				$ 10.82
4	285353		Ring, Retainer   (Replaces: 63283)				$ 7.30
5	285785		Clutch (complete)   (Replaces: 64176)			Immediately	$ 61.22
6	285790		Band And Lining (includes Illus. 7 & 8)   (Replaces: 388190)			Immediately	$ 38.92
7	285790		Spring, Clutch   (Replaces: 64177)			Immediately	$ 38.92
8	WP62646		Cap, Clutch Spring (2)   (Replaces: 62646)				$ 6.80
9	3360629		Gearcase (complete) (refer To Page 12 For Further Breakdown)   (Replaces: 389246)			Immediately	$ 422.22
10	62735		Screw, 5/16-24 X 3/16 (3) (gearcase To Tub Support)		Appelez-nous	-
11	WP62611		Plate, Motor Mount To Gearcase   (Replaces: 62611)				$ 105.39
12	WP3400516		Screw, 5/16-24 X 5/8 (2)   (Replaces: 98062)			Immediately	$ 6.47
13	285753A		Coupling, Motor & Isolating   (Replaces: 285140)			Immediately	$ 23.31
14	WP661600		Motor, Main Drive   (Replaces: 62556)			Immediately	$ 207.58
16	WP3946532		Plate, Motor   (Replaces: 63761)				$ 28.15
17	238614		Bumper (2)				$ 72.68
18	WP3363394		Pump, Complete   (Replaces: 3348015)			Immediately	$ 55.49
19	WP8546127		Retainer, Pump   (Replaces: 62700)				$ 7.33
20	62850		Switch, Main Drive Motor		Appelez-nous	-
21	WP62691		Grommet, Motor (4)   (Replaces: 62691)				$ 10.64
22	WPW10086010		Retainer, Motor (2)   (Replaces: 62692)				$ 7.15
